Laser Welding of Dissimilar Materials Guide
Laser welding has become an essential joining technology in modern manufacturing due to its precision, speed, and ability to produce high-quality welds with minimal distortion. Among its various applications, welding dissimilar materials stands out as one of the most technically demanding and strategically important. As industries push for lightweight structures, cost-effective designs, and multifunctional components, the need to join metals with vastly different thermal, mechanical, and metallurgical properties is growing rapidly. For example, combining aluminum with carbon steel in the automotive sector can reduce vehicle weight while maintaining strength, and joining copper with aluminum in battery technology improves electrical conductivity without compromising structural integrity.
However, welding dissimilar materials introduces significant challenges, ranging from differences in melting points and thermal expansion to the formation of brittle intermetallic compounds. Laser welding offers a controlled, high-energy process capable of overcoming many of these obstacles, especially when integrated with advanced techniques like beam modulation, filler materials, or hybrid processes.
This guide provides a detailed overview of laser welding for dissimilar materials. It covers the underlying principles, challenges, materials, techniques, quality control methods, and industrial applications. Whether you’re a researcher, engineer, or manufacturer, this guide aims to equip you with the knowledge to optimize dissimilar metal welding through laser technology.
Table of Contents
Laser Welding Basics
Understanding laser welding is essential for grasping the broader context of laser-based technologies, including laser cleaning. Laser welding is a high-precision process that uses a focused beam of coherent light to join materials, primarily metals and thermoplastics. It is widely adopted in industries where precision, speed, and automation are priorities, such as automotive, aerospace, electronics, medical devices, and energy sectors.
Principles of Laser Welding
Laser welding operates by delivering a concentrated beam of light, usually in the infrared spectrum, onto a joint between two workpieces. The beam’s energy is absorbed by the material, rapidly increasing its temperature to the point of melting. The molten materials coalesce and, upon cooling, solidify into a strong weld.
Key characteristics of the laser welding process include:
- High Energy Density: Enables deep penetration with minimal heat-affected zones (HAZ), reducing distortion and post-processing requirements.
- Localized Heating: Limits thermal expansion and deformation, which is especially important for delicate or heat-sensitive components.
- Non-Contact Process: The laser does not physically touch the material, reducing wear and contamination risks.
- Precision Control: Laser parameters can be finely tuned, allowing for micro-welding on components smaller than a millimeter.
Laser welding can be performed in continuous or pulsed mode, depending on the material type, thickness, and desired weld characteristics.
Types of Lasers Used in Welding
Different types of lasers are used in welding applications, each with specific characteristics that make them more or less suitable for certain tasks.
Fiber Lasers
Fiber lasers are solid-state lasers that use an optical fiber doped with rare-earth elements (like ytterbium) as the gain medium. They offer high beam quality, excellent energy efficiency, and low maintenance requirements. Fiber lasers are ideal for:
- High-speed welding of stainless steel, aluminum, and copper
- Precision tasks such as battery tab welding or thin foil joining
- Integration into robotic or automated systems
Nd:YAG Lasers (Neodymium-Doped Yttrium Aluminum Garnet)
Nd:YAG lasers operate in the near-infrared spectrum and can be used in both pulsed and continuous modes. They are especially effective for reflective materials like gold and copper. While increasingly being replaced by fiber lasers, Nd:YAG systems are still used in:
- Spot welding of small components
- Jewelry and dental device fabrication
- Aerospace sensor and instrumentation welding
CO2 Lasers
CO2 lasers use a gas mixture (typically carbon dioxide, nitrogen, and helium) as the lasing medium. They emit in the far-infrared spectrum (10.6 µm) and are excellent for cutting and welding thicker materials. However, they require precise beam delivery systems and are less effective on reflective or thin metals. Applications include:
- Welding of non-metallic materials like plastics and ceramics
- Heavy-gauge steel fabrication
- Pipe and tube manufacturing
Disk Lasers
Disk lasers combine the advantages of fiber and solid-state lasers, providing high output power and excellent beam stability. They are used in:
- High-volume automotive production
- Deep penetration welding
- Applications requiring consistent performance over long cycles
Each laser type has distinct advantages and limitations based on power requirements, material compatibility, and system integration needs.
Laser Welding Modes
The welding mode refers to how the laser energy interacts with the material, which directly affects weld geometry, depth, and quality. The two main welding modes are:
Conduction Mode Welding
In conduction mode, the laser energy is absorbed at the surface, causing it to melt without vaporizing. This mode is used at lower power densities (below 10⁵ W/cm²) and produces a shallow, wide weld profile. It is characterized by:
- Smooth, clean welds with minimal spatter
- Reduced risk of keyhole instability or voids
Best for thin materials and components requiring high aesthetic standards (e.g., electronics casings, medical instruments)
Keyhole Mode Welding
Keyhole welding occurs at higher power densities (above 10⁶ W/cm²). The intense energy causes rapid vaporization of the material, forming a narrow, deep cavity or “keyhole” that enables the laser to penetrate deeper into the workpiece. The molten metal flows around this cavity and solidifies to form a strong, deep weld. Key characteristics include:
- Deep weld penetration (several millimeters)
- Increased strength, especially in structural applications
- More prone to porosity or cracking if not controlled properly
This mode is ideal for thick-section welding in automotive chassis, aerospace frames, and other structural applications where joint strength is critical.
Understanding these fundamental aspects of laser welding provides valuable context for how laser cleaning systems are used to prepare surfaces before welding or to remove residues and contaminants afterward, both of which are crucial for achieving high-quality welds.
Challenges of Welding Dissimilar Materials
Welding dissimilar materials—such as aluminum to steel or copper to titanium—opens up new possibilities in product design, lightweighting, and cost-efficiency. However, it also introduces significant technical challenges. These issues directly impact joint quality and performance, and many of them are compounded by surface impurities or oxide layers, which is where laser cleaning machines play a critical role. Below are the main factors that make dissimilar metal welding difficult:
Differences in Melting Points
One of the most obvious challenges is the large gap in melting temperatures between different metals. For example, aluminum melts at around 660℃, while steel melts closer to 1,500℃. During laser welding, this can cause the lower-melting material to overheat or vaporize before the higher-melting material begins to fuse, leading to incomplete bonding, excessive spatter, or deformation. Controlling heat input and using precise cleaning to remove oxides and contaminants are essential to mitigate this issue.
Thermal Conductivity
Thermal conductivity affects how heat spreads through a material. Metals like copper have very high conductivity, meaning heat dissipates quickly, making it difficult to maintain the temperatures needed for welding. Conversely, metals with low thermal conductivity retain heat and are prone to localized overheating. These differences can cause uneven melting, incomplete fusion, and localized thermal stress. Surface preparation with laser cleaning ensures uniform energy absorption, especially critical when welding conductive metals.
Coefficient of Thermal Expansion (CTE)
The CTE defines how much a material expands or contracts when heated or cooled. A mismatch in CTE between two dissimilar metals means that once the weld cools, the different rates of shrinkage can introduce internal stress. This often leads to warping, cracking, or joint fatigue over time. While process control and joint design are key, clean, oxide-free surfaces (achieved through laser cleaning) help reduce weld inconsistencies that exacerbate these stresses.
Formation of Intermetallic Compounds (IMCs)
When dissimilar metals are welded, especially ferrous to non-ferrous combinations (e.g., steel to aluminum), brittle intermetallic compounds often form at the interface. These compounds weaken the weld and can make it prone to cracking or failure under stress. The thickness and brittleness of these IMC layers depend heavily on heat input and surface chemistry. Laser cleaning is crucial in reducing oxide layers and contaminants that can accelerate IMC formation or disrupt bonding.
Metallurgical Incompatibility
Some metals simply don’t bond well due to their differing atomic structures or solubility limits. For example, titanium and steel are difficult to weld directly without using interlayers or brazing methods. Metallurgical incompatibility often leads to poor wetting, void formation, and reduced joint strength. Precise laser cleaning helps improve surface activation and wettability, which is especially important when using fillers or coatings to bridge the compatibility gap.
Absorption Differences
Different metals absorb laser energy differently at various wavelengths. For instance, copper reflects a large portion of infrared laser energy, making it harder to weld with standard fiber lasers. In contrast, materials like steel and aluminum absorb laser energy more efficiently. These differences can result in uneven energy distribution, unstable melt pools, and inconsistent weld penetration. Removing surface oxides with laser cleaning improves energy absorption and ensures more stable welding conditions.
Laser cleaning machines play a vital supporting role in overcoming many of these challenges. By removing oxides, contaminants, and microfilms before welding, they ensure better energy absorption, more uniform melting, and a stronger metallurgical bond—especially important when working with dissimilar materials.
Benefits of Laser Welding Dissimilar Materials
Despite the challenges involved, laser welding remains one of the most effective methods for joining dissimilar materials. Its precision, energy efficiency, and adaptability make it especially valuable in industries that demand high-performance joints between metals with different physical and chemical properties. Below are the key benefits that laser welding brings to dissimilar material joining, many of which are also made more reliable through the use of laser cleaning machines in surface preparation.
High Energy Density
Laser welding delivers energy in a highly concentrated beam, allowing rapid and localized melting of the base materials. This high energy density is critical for welding dissimilar materials with varying melting points, as it enables the process to focus heat exactly where it’s needed, minimizing the risk of overheating or vaporizing one material before the other begins to melt. The result is cleaner, more controlled welds with fewer defects.
Precise Heat Input Control
Laser systems offer exceptional control over parameters like power, focus, pulse duration, and beam movement. This precision is essential when balancing the thermal behavior of two different metals. By fine-tuning these variables, engineers can reduce thermal stress, limit the formation of brittle intermetallic compounds, and improve joint strength. Combined with pre-weld laser cleaning, which ensures consistent surface quality, this control enhances overall weld integrity.
Narrow Heat-Affected Zone (HAZ)
One of the standout advantages of laser welding is its ability to produce a narrow heat-affected zone. This means the areas adjacent to the weld experience minimal thermal distortion, which is particularly important when working with metals that respond differently to heat. Reducing the HAZ minimizes material warping, preserves mechanical properties, and lowers the risk of cracking—all common concerns in dissimilar metal joints.
Fast, Efficient Welding
Laser welding operates at high speeds, often outperforming traditional welding methods like TIG or MIG, especially in automation settings. This efficiency translates to faster production cycles and reduced downtime, which is essential in industries like automotive, aerospace, and electronics. When paired with laser cleaning machines for pre- and post-weld surface treatment, the entire process becomes even more streamlined, further cutting costs and increasing throughput.
Versatility and Flexibility
Laser welding can join a wide variety of metal combinations—aluminum to steel, copper to aluminum, titanium to stainless steel, and more. It supports different joint types (butt, lap, T-joint), various thicknesses, and complex geometries. The same laser systems can often be adapted for cleaning, cutting, or marking, making them highly flexible tools in a modern manufacturing environment. With integrated laser cleaning, systems can be configured for multi-stage processes without needing separate machinery.
Laser welding’s ability to reliably join dissimilar materials expands design possibilities and opens doors for innovation. When combined with laser cleaning technology to ensure pristine surface conditions, manufacturers gain a powerful, precise, and efficient method for building next-generation products across diverse industries.
Material Pairing Considerations
Laser cleaning machines play a critical role in ensuring the success of welding dissimilar materials by preparing surfaces for optimal fusion. However, before any laser cleaning or welding can take place, understanding how materials interact is essential. Pairing dissimilar metals presents unique technical challenges that must be addressed through thoughtful material selection, joint design, and the possible use of filler materials or interlayers. Here’s what to consider:
Common Dissimilar Material Combinations
In many industries, especially automotive, aerospace, and electronics, joining dissimilar metals is a practical necessity driven by performance, cost, or weight-saving goals. Common material pairings include:
- Aluminum to Steel: Widely used in automotive structures to reduce weight while maintaining strength.
- Copper to Aluminum: Found in electric vehicle battery connections due to copper’s conductivity and aluminum’s light weight.
- Titanium to Stainless Steel: Common in aerospace and medical devices, where corrosion resistance and strength-to-weight ratio are critical.
- Nickel Alloys to Carbon Steel: Used in power generation and chemical processing equipment for high-temperature applications.
- Magnesium to Aluminum: Employed in lightweight structures requiring strength and rigidity.
Each combination brings challenges like thermal mismatch and intermetallic formation, which laser cleaning helps mitigate by ensuring a contaminant-free, oxide-free surface for better bonding.
Joint Design
Joint configuration has a significant impact on the strength, quality, and durability of dissimilar metal welds. Choosing the right design helps manage stress, accommodate expansion differences, and improve weld quality. Common joint types include:
- Butt Joints: Require precise edge preparation and alignment, ideal for similar thickness materials.
- Lap Joints: Often used for dissimilar metals, especially where one material is thinner or more heat-sensitive; provides good mechanical support.
- T-Joints and Corner Joints: Used in structural frameworks, especially when welding pipes, brackets, or support arms.
- Step Joints: Useful for aligning materials of different thicknesses or thermal properties, reducing stress at the interface.
Laser cleaning ensures the surfaces within these joints are properly prepared, removing oxides, paint, or coatings that could otherwise compromise weld integrity or cause inclusions.
Filler Materials and Interlayers
When welding dissimilar metals, filler materials or interlayers are often used to promote compatibility and reduce the formation of brittle intermetallic compounds. These additions act as buffers or transitional alloys, improving mechanical properties and bonding. Examples include:
- Nickel (Ni) Interlayers: Commonly used between titanium and steel to prevent brittle Ti-Fe compounds.
- Zinc (Zn) Coatings: Applied between aluminum and steel to lower the risk of intermetallic formation.
- Copper (Cu) Fillers: Used in aluminum-copper or aluminum-steel welding to improve conductivity and control heat distribution.
- Silver (Ag) and Tin (Sn): Sometimes used in microelectronics and brazing applications where precision and conductivity are crucial.
Laser cleaning plays a supporting role here by ensuring both the base metals and any interlayers or fillers are free from contaminants, allowing for more uniform melting and metallurgical bonding during the welding process.
By carefully selecting compatible material pairs, optimizing joint design, and incorporating appropriate fillers or interlayers, manufacturers can achieve strong, reliable dissimilar metal welds. Laser cleaning machines enhance this process by delivering the surface quality required to ensure consistent, high-integrity joins, especially in high-performance and high-precision industries.
Process Parameters and Controls
The effectiveness and consistency of laser cleaning depend heavily on properly selected and tightly controlled process parameters. Whether the goal is to remove rust, paint, oxide layers, or prepare surfaces for welding or bonding, adjusting the right settings ensures optimal cleaning performance without damaging the underlying material. In high-precision industries—such as aerospace, automotive, and electronics—process control is especially critical to meet strict quality standards. This section outlines the key parameters, monitoring strategies, and cooling considerations involved in laser cleaning operations.
Critical Parameters
Several parameters directly influence the efficiency, depth, and safety of the laser cleaning process. These include:
- Laser Power: Determines how much energy is delivered to the surface. Higher power allows for deeper or faster cleaning, but increases the risk of damaging sensitive materials.
- Pulse Duration and Repetition Rate: Shorter pulses (in nanosecond or picosecond range) with high repetition rates are effective for precise, non-abrasive cleaning. Longer pulses may be used for more aggressive removal.
- Wavelength: The laser’s wavelength affects how well the target material absorbs the energy. Infrared lasers (e.g., 1064 nm) are common for metal surfaces, while ultraviolet lasers may be used for polymers or delicate surfaces.
- Beam Spot Size and Focus: A tightly focused beam delivers higher energy density, suitable for fine or detailed cleaning. Adjusting the spot size affects area coverage and intensity.
- Scan Speed and Pattern: The speed at which the laser moves across the surface and the chosen scan pattern (e.g., spiral, raster) determine cleaning uniformity and processing time.
Choosing the right combination of these parameters is essential for balancing cleaning effectiveness with material protection.
Process Monitoring and Control
To maintain consistent results, especially in automated or high-volume settings, real-time process monitoring and feedback systems are critical. Key control technologies include:
- Inline Sensors: Optical sensors, cameras, or thermal detectors can monitor surface reflectivity, cleanliness, or temperature in real-time, adjusting parameters as needed.
- Closed-Loop Control Systems: These systems automatically regulate laser power, speed, and focus based on sensor feedback to prevent over-cleaning or under-processing.
- Machine Vision Integration: High-resolution cameras combined with AI algorithms can detect surface contamination levels and adapt the cleaning path dynamically.
- Safety Controls: Interlocks, shielding, and emergency stop mechanisms protect operators and equipment from laser exposure and material ejection.
Process monitoring also helps document and validate results, which is essential in regulated industries like aerospace or medical device manufacturing.
Cooling Strategies
Although laser cleaning is non-contact and often considered a “cold” process, significant heat can still accumulate during prolonged or high-power operations, especially when cleaning thick oxides or working on heat-sensitive materials. Proper cooling is necessary to prevent thermal distortion, oxidation, or microstructural damage. Key cooling strategies include:
- Air Cooling: Directing compressed air across the work surface helps disperse heat and remove debris.
- Water-Cooled Systems: Some high-power laser systems include integrated water cooling to regulate laser head temperature.
- Pulse Modulation: Reducing pulse duration or introducing pauses allows the surface to cool between bursts of energy.
- Heat Sinks or Thermal Barriers: In sensitive applications, heat sinks or thermal barriers can be used to protect adjacent components from heat buildup.
Combining cooling with precise control of laser parameters ensures that cleaning is both effective and safe for the material and surrounding components.
Careful control of laser cleaning parameters is what makes the technology so valuable in modern manufacturing. It allows for repeatable, efficient surface preparation across a range of materials and applications while minimizing risk, waste, and damage.
Summary
Laser welding of dissimilar materials is a powerful yet technically complex process that enables manufacturers to combine metals with different properties for innovative, high-performance designs. By leveraging the high energy density, precision, and control of laser technology, industries can reliably join combinations such as aluminum to steel, copper to aluminum, and titanium to stainless steel. This capability is critical in applications where weight, conductivity, strength, or corrosion resistance must be balanced.
However, successful dissimilar metal welding requires more than just advanced equipment—it demands a deep understanding of thermal behavior, metallurgical compatibility, joint design, and process control. Challenges like mismatched melting points, thermal expansion, and formation of brittle intermetallic compounds must be addressed through techniques such as beam modulation, filler materials, and interlayers. Clean, oxide-free surfaces—often achieved with laser cleaning—also play a crucial role in ensuring high weld quality.
When executed properly, laser welding of dissimilar materials enables lightweight structures, compact electronic assemblies, and durable medical components. As technology continues to evolve, including AI-driven parameter control and hybrid manufacturing systems, laser welding will remain a cornerstone of modern production strategies across multiple industries.
Get Laser Welding Solutions
At Maxcool CNC, we understand that welding dissimilar materials is one of the most advanced and demanding applications in modern manufacturing. Whether you’re working with aluminum and steel in automotive body structures, copper and aluminum in battery tabs, or titanium and stainless steel in aerospace components, our intelligent laser welding systems are engineered to meet these challenges with precision and reliability.

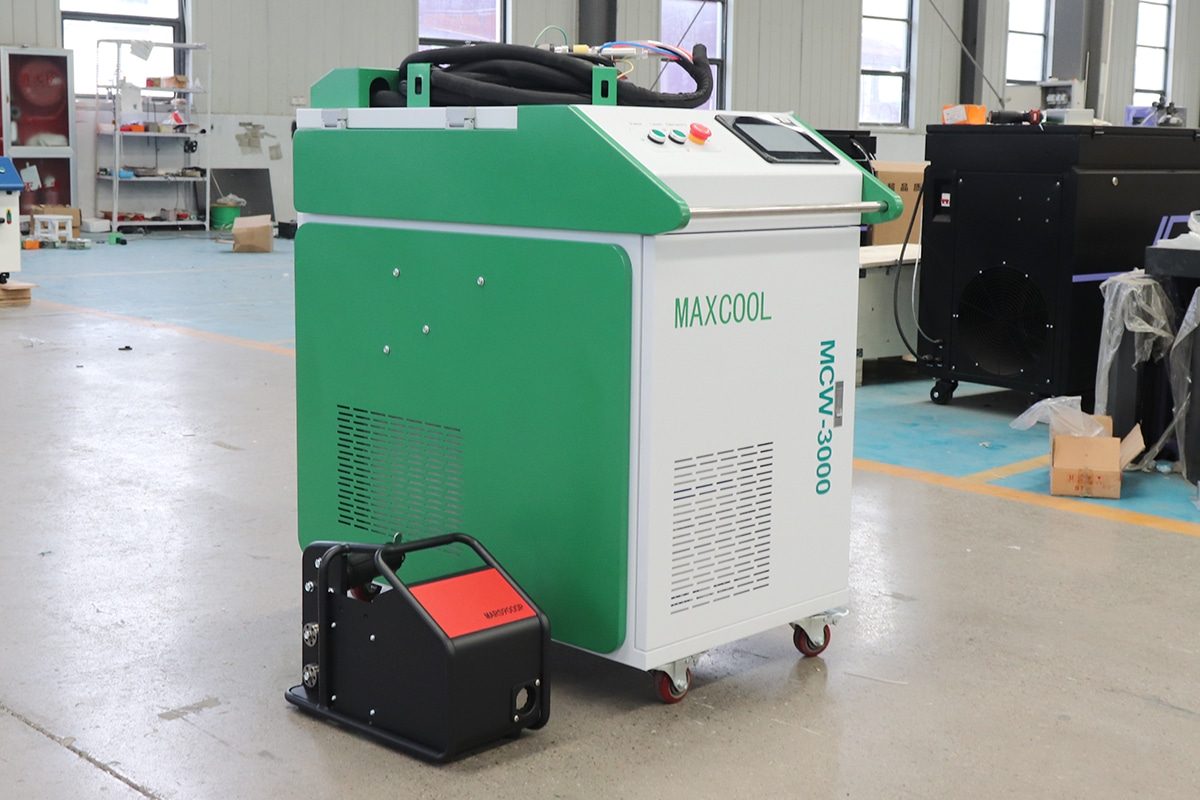

Our laser welding solutions are built with high-performance fiber lasers, real-time process monitoring, and customizable control systems to ensure optimal energy delivery, minimal heat-affected zones, and strong, defect-free joints. We also offer systems that integrate seamlessly with robotic platforms and smart manufacturing environments, enabling flexible production and consistent quality.
