How Does Laser Beam Focus Affect Weld Quality
Laser welding has become one of the most widely adopted joining technologies in modern manufacturing due to its high precision, fast processing speed, minimal heat input, and ability to produce strong, high-quality welds. Industries such as automotive, aerospace, electronics, medical device manufacturing, and energy production increasingly rely on laser welding to meet demanding requirements for accuracy, productivity, and material performance. However, achieving consistent weld quality depends on the careful control of several process parameters, among which laser beam focus is one of the most critical.
The focus position of a laser beam directly influences the distribution of energy delivered to the workpiece. By concentrating laser energy into a small spot, the beam generates the high power density required to melt and fuse materials efficiently. Even slight variations in focal position can significantly alter the size, shape, and intensity of the laser spot, affecting the welding process and the resulting joint characteristics. Improper beam focus may lead to insufficient penetration, excessive spatter, porosity, undercutting, distortion, or other welding defects that compromise structural integrity and product reliability.
Beam focus affects key welding outcomes, including penetration depth, weld bead geometry, heat-affected zone size, and overall process stability. Depending on whether the focal point is positioned above, on, or below the workpiece surface, the interaction between the laser and material changes substantially. These variations influence energy absorption, molten pool behavior, keyhole formation, and cooling rates, all of which contribute to the final weld quality.
Understanding the relationship between laser beam focus and weld quality is essential for optimizing welding performance and ensuring repeatable results. This article examines the fundamental principles of laser beam focusing, explores how focal position influences weld characteristics, and discusses best practices for selecting and maintaining optimal focus conditions in laser welding applications.
Table of Contents
Understanding Laser Beam Focus
Laser beam focus is one of the most important factors influencing laser welding performance. The focal position determines how laser energy is concentrated on or within the material, directly affecting heat generation, penetration depth, weld shape, and overall weld quality. Even when all other welding parameters remain constant, changing the focus position can significantly alter the welding results. Understanding the fundamentals of laser beam focus helps manufacturers optimize process efficiency, reduce defects, and achieve consistent weld quality across different materials and thicknesses.
What Is Laser Beam Focus?
Laser beam focus refers to the point at which a laser beam is concentrated to its smallest diameter after passing through a focusing lens or optical system. At this focal point, the laser energy is concentrated into the smallest possible area, creating the highest energy density.
As a laser beam travels through space, it gradually converges toward the focal point and then diverges after passing it. The location of this focal point relative to the workpiece surface is known as the focus position. During welding, operators can intentionally place the focal point above the surface, directly on the surface, or below the surface to achieve specific welding characteristics.
The focusing system typically consists of lenses, mirrors, or fiber optics that control beam convergence. Modern laser welding systems often include automated focus adjustment mechanisms to maintain optimal focus throughout the welding process, especially when working with complex geometries or varying material thicknesses.
Because laser welding relies on concentrated thermal energy, accurate focusing is essential. A poorly focused beam spreads energy over a larger area, reducing heating efficiency and potentially causing incomplete fusion or inconsistent welds.
Focus Position Terminology
Focus position is generally defined by the location of the focal point relative to the workpiece surface.
Positive Focus
Positive focus occurs when the focal point is positioned above the surface of the workpiece. In this configuration, the beam reaches its minimum diameter before contacting the material and begins to diverge as it enters the workpiece.
Positive focus generally produces a wider weld bead with lower penetration depth because the laser spot on the material surface is larger. This focus condition is often used for thin materials, surface treatments, or applications where excessive penetration must be avoided. It can also improve process stability in some welding situations by reducing the risk of excessive keyhole formation.
Zero Focus
Zero focus occurs when the focal point is located directly on the workpiece surface. At this position, the beam diameter is at its minimum at the material surface, producing maximum power concentration at the point of contact.
This setting often provides a balanced combination of penetration depth and weld width. For many general-purpose welding applications, zero focus serves as a starting point for process optimization. However, the optimal focus position may vary depending on material type, thickness, laser power, and welding speed.
Negative Focus
Negative focus occurs when the focal point is positioned below the workpiece surface. In this case, the laser beam continues converging after entering the material and reaches maximum concentration beneath the surface.
Negative focus is commonly used for deep penetration welding because it promotes stronger keyhole formation and directs more energy into the material thickness. This can result in narrower welds with greater penetration depth. Many high-power laser welding applications use negative focus settings to achieve full penetration in thicker materials.
Focus Spot Size
Focus spot size refers to the diameter of the laser beam at the focal point. It is one of the primary factors that determines how much energy is delivered to a specific area of the workpiece.
A smaller focus spot concentrates the same laser power into a smaller area, producing higher energy density and more intense heating. This enables deeper penetration, faster melting, and narrower weld beads. Small spot sizes are often preferred for precision welding applications, such as electronics, medical devices, and thin metal components.
A larger focus spot distributes energy over a broader area. While this reduces penetration depth, it creates a wider molten pool and can improve tolerance to joint gaps and positioning variations. Larger spot sizes may also reduce the risk of burn-through when welding thin materials.
Several factors influence focus spot size, including laser wavelength, beam quality, focal length of the lens, optical alignment, and beam delivery system design. Contaminated optics, damaged lenses, or incorrect system calibration can increase spot size and negatively affect welding performance.
Maintaining a consistent focus spot size is critical for producing repeatable welds. Even small variations can lead to changes in penetration depth, weld geometry, and process stability.
Power Density and Focus
Power density, also known as irradiance, describes the amount of laser power concentrated within a specific area. It is typically expressed in watts per square centimeter (W/cm²) and is one of the most important parameters in laser welding.
For a given laser power, power density increases as spot size decreases. This relationship explains why beam focus has such a significant impact on welding behavior. A tightly focused beam generates extremely high power densities capable of rapidly melting and vaporizing metal, leading to keyhole formation and deep penetration welding.
When the beam is out of focus, the spot size becomes larger, and the power density decreases. As a result, less energy is available to penetrate the material, and the welding process may shift from deep penetration mode to conduction mode. This can produce shallower welds, reduced fusion, and lower process efficiency.
Power density also influences weld pool dynamics, cooling rates, and defect formation. Excessively high power density may create spatter, porosity, or instability, while insufficient power density may result in incomplete penetration and weak joints. Therefore, selecting the correct focus position is essential for achieving the appropriate balance between energy concentration and welding stability.
Laser beam focus determines how laser energy is delivered to a workpiece and plays a fundamental role in controlling weld quality. The focal point can be positioned above, on, or below the material surface, resulting in positive focus, zero focus, or negative focus conditions. Each focus setting produces different penetration characteristics and weld profiles, making focus adjustment an important process optimization tool.
Focus spot size and power density are closely connected to beam focus. A smaller spot size increases energy concentration and penetration capability, while a larger spot size spreads energy over a wider area. Because power density directly influences melting behavior, keyhole formation, and weld pool stability, even minor changes in focus position can significantly affect welding results. Understanding these relationships provides the foundation for selecting the optimal focus settings needed to achieve strong, consistent, and defect-free laser welds.
The Relationship Between Focus and Weld Formation
The quality of a laser weld is determined by a series of physical processes that occur when the laser beam interacts with the material. Beam focus plays a central role in controlling these processes because it directly affects how energy is delivered to the workpiece. The position of the focal point influences heat generation, molten pool behavior, keyhole stability, and the cooling and solidification of the weld metal. As a result, focus settings have a significant impact on weld penetration, bead geometry, microstructure, and defect formation.
Understanding the relationship between beam focus and weld formation is essential for optimizing laser welding performance. By controlling the focal position, manufacturers can influence the entire welding process, from the initial absorption of laser energy to the final solidified weld.
Heat Generation
Heat generation is the first stage of weld formation and begins when the laser beam strikes the material surface. The amount of heat produced depends largely on the power density of the laser beam, which is directly influenced by focus position.
When the beam is properly focused, laser energy is concentrated into a small area, producing extremely high temperatures within milliseconds. The material rapidly absorbs this energy and heats to its melting point. As the temperature continues to rise, portions of the material may even vaporize, particularly in high-power laser welding applications.
A tightly focused beam generates higher power density and more intense localized heating. This allows energy to penetrate deeper into the material while minimizing heat spread to surrounding areas. In contrast, an unfocused or poorly focused beam distributes energy over a larger area, reducing heating efficiency and requiring more energy to achieve the same level of melting.
Focus position also influences how heat is distributed throughout the material thickness. Positive focus tends to concentrate heat near the surface, while negative focus directs more energy into the material, supporting deeper penetration. The resulting thermal profile affects both weld quality and process efficiency.
Molten Pool Formation
As sufficient heat accumulates, the material begins to melt, forming a molten pool. The characteristics of this molten pool are critical because they determine the final shape and integrity of the weld.
Laser beam focus directly affects the size, depth, and stability of the molten pool. A properly focused beam creates a controlled molten region that allows the material to fuse effectively. The molten metal flows under the influence of surface tension, gravity, vapor pressure, and thermal gradients before solidifying into the weld bead.
When the focus is optimized, the molten pool remains stable and uniform. This promotes consistent penetration and smooth weld bead formation. If the focus position is incorrect, the molten pool may become excessively shallow, unstable, or irregular. Such conditions can increase the likelihood of defects such as incomplete fusion, undercutting, excessive reinforcement, or inconsistent bead geometry.
Focus also affects molten pool dynamics. Higher power density generated by tighter focusing increases fluid movement within the molten metal, enhancing mixing and helping eliminate voids. However, excessive concentration of energy may create turbulence and spatter, reducing weld quality.
The ability to control molten pool behavior through focus adjustment is one of the key advantages of laser welding technology.
Keyhole Formation
In high-power laser welding, the laser intensity may become great enough to vaporize metal and create a narrow vapor-filled cavity known as a keyhole. This phenomenon is a defining characteristic of deep penetration laser welding.
Beam focus plays a crucial role in determining whether a stable keyhole forms. When the laser is focused correctly, sufficient power density is achieved to vaporize material and generate the vapor pressure needed to maintain the cavity. The laser beam then penetrates deeper into the workpiece through the keyhole, allowing energy to be delivered throughout the material thickness.
A stable keyhole enables deep, narrow welds with high aspect ratios and excellent penetration efficiency. However, keyhole stability is highly sensitive to focus position. If the beam is excessively defocused, power density may fall below the threshold required for keyhole formation, resulting in shallow conduction-mode welding instead.
Conversely, excessive focusing or improper focal positioning can create an unstable keyhole. Fluctuations in keyhole shape may cause trapped gases, pore formation, spatter, or even the collapse of the cavity. These defects can significantly reduce weld strength and appearance.
Maintaining the correct focal position is therefore essential for achieving stable keyhole welding and maximizing penetration depth.
Cooling and Solidification
After the laser beam moves away from the weld zone, the molten metal begins to cool and solidify. The cooling process determines the final microstructure and mechanical properties of the weld.
Focus position influences cooling behavior because it affects the amount and distribution of heat introduced into the material. A highly focused beam typically generates a narrow heat-affected zone and rapid cooling rates due to the localized nature of the heat input. Faster cooling often produces finer grain structures, which can improve strength and hardness in many materials.
When the beam is less focused and the heat is spread over a larger area, cooling occurs more gradually. This can result in wider heat-affected zones and coarser microstructures. Depending on the material being welded, these changes may affect toughness, hardness, corrosion resistance, and residual stress levels.
The solidification process also affects defect formation. Controlled cooling promotes uniform grain growth and reduces the likelihood of cracking or distortion. In contrast, excessive heat input caused by improper focus may increase thermal stresses, leading to warping, shrinkage defects, or hot cracking.
Because the final properties of a weld are closely linked to its cooling history, focus adjustment remains an important tool for controlling both weld quality and material performance.
Laser beam focus influences every stage of weld formation, from the initial generation of heat to the final solidification of the weld metal. By controlling the concentration and distribution of laser energy, the focus position determines how efficiently the material absorbs heat, how the molten pool develops, and whether a stable keyhole can be maintained during welding. These effects directly impact weld penetration, bead geometry, process stability, and overall welding efficiency.
The influence of focus continues even after melting occurs. Changes in focal position affect cooling rates, microstructural development, and residual stress formation, which ultimately determine the mechanical properties and long-term performance of the weld. Proper focus adjustment ensures stable heat generation, controlled molten pool behavior, reliable keyhole formation, and uniform solidification. As a result, maintaining the correct beam focus is one of the most important requirements for producing high-quality, consistent, and defect-free laser welds.
Effects of Focus Position on Weld Penetration
Weld penetration is one of the most important indicators of laser welding quality because it directly affects joint strength, load-bearing capacity, and structural integrity. Achieving the desired penetration depth requires precise control of numerous welding parameters, including laser power, travel speed, material properties, and beam focus. Among these variables, focus position has a particularly significant influence because it determines where laser energy is concentrated within the workpiece.
By moving the focal point above, on, or below the material surface, manufacturers can alter energy distribution and control how deeply the laser penetrates the material. Different focus positions produce different penetration profiles, making focus adjustment a critical process optimization tool. Understanding how focus position affects penetration depth enables welders and engineers to select the most suitable settings for specific materials, thicknesses, and welding objectives.
Penetration Depth Fundamentals
Penetration depth refers to the distance that the weld extends into the material from the surface. In laser welding, penetration is primarily controlled by the amount of energy delivered to the workpiece and how effectively that energy is absorbed and transferred into the material.
The relationship between laser focus and penetration is closely linked to power density. A focused beam concentrates energy into a small area, producing higher temperatures and greater melting capability. As power density increases, the laser can generate deeper molten zones and more stable keyholes, resulting in increased penetration.
Several factors influence penetration depth, including laser power, beam quality, spot size, welding speed, material reflectivity, thermal conductivity, and focus position. Even when all other parameters remain unchanged, adjusting the focal point can significantly increase or decrease penetration.
For many applications, achieving the correct penetration depth is essential. Insufficient penetration may lead to weak joints and incomplete fusion, while excessive penetration can cause burn-through, distortion, or unnecessary heat input. Proper focus positioning helps achieve the balance required for reliable weld quality.
Positive Focus and Penetration
Positive focus occurs when the focal point is positioned above the surface of the workpiece. In this configuration, the laser beam reaches its minimum diameter before contacting the material and begins to diverge as it enters the workpiece.
Because the beam is already expanding when it strikes the material, the spot size at the surface is larger than the minimum achievable spot size. This reduces power density and spreads energy across a wider area. As a result, positive focus generally produces shallower penetration compared to surface or negative focus conditions.
The wider energy distribution often creates broader weld beads with lower penetration-to-width ratios. While this may not be suitable for applications requiring deep fusion, it can be advantageous when welding thin materials where excessive penetration could lead to burn-through or distortion.
Positive focus may also improve process stability in certain situations by reducing the intensity of keyhole formation. The gentler energy input can minimize spatter and help maintain a smoother surface appearance. For this reason, positive focus is sometimes selected for cosmetic welds, thin-sheet applications, and situations where surface quality is prioritized over maximum penetration.
However, excessive positive focus can reduce penetration to the point where incomplete fusion occurs, compromising weld strength and reliability.
Surface Focus and Penetration
Surface focus, often referred to as zero focus, occurs when the focal point is positioned directly on the workpiece surface. At this location, the laser beam reaches its smallest diameter precisely where it contacts the material.
This configuration produces maximum power density at the surface and generally provides a balanced combination of penetration depth and weld width. The concentrated energy rapidly melts the material and promotes efficient heat transfer into the workpiece.
For many welding applications, surface focus serves as a practical starting point because it offers predictable and repeatable results. It often produces stable weld pools, consistent penetration profiles, and good process control across a wide range of materials and thicknesses.
Surface focus is particularly effective when moderate penetration is required without the need for extreme keyhole development. It can provide sufficient energy concentration to achieve full fusion in many medium-thickness materials while maintaining good weld appearance and dimensional control.
Although surface focus is versatile, it may not always deliver maximum penetration. For thicker materials that require deep fusion, moving the focal point slightly below the surface often produces better results.
Negative Focus and Penetration
Negative focus occurs when the focal point is positioned below the workpiece surface. In this arrangement, the laser beam continues converging after entering the material and reaches maximum concentration beneath the surface.
This focus condition is commonly associated with the deepest penetration levels in laser welding. By concentrating energy below the surface, negative focus promotes strong keyhole formation and directs laser energy deeper into the material thickness. The resulting welds often exhibit narrow profiles with high penetration-to-width ratios.
One of the primary advantages of negative focus is its ability to increase penetration efficiency. More of the laser energy is utilized within the material rather than being concentrated solely at the surface. This allows deeper welds to be produced without necessarily increasing laser power.
Negative focus is widely used in applications involving thicker materials, structural components, and deep penetration welding requirements. Industries such as automotive manufacturing, shipbuilding, aerospace, and heavy equipment fabrication frequently employ negative focus settings to achieve full penetration welds.
However, excessive negative focus can create challenges. If the focal point is positioned too far below the surface, energy concentration at the upper portion of the weld may become insufficient, potentially causing unstable keyhole behavior, porosity, or irregular weld geometry. Therefore, the optimal negative focus position must be carefully determined for each application.
Focus position is one of the most influential factors affecting weld penetration in laser welding. By controlling where the laser beam reaches its highest energy concentration, the focus position determines how heat is distributed throughout the workpiece and how deeply the weld extends into the material. Even small adjustments to the focal point can produce significant changes in penetration depth, weld profile, and process stability.
Positive focus generally produces wider welds with shallower penetration due to reduced power density at the material surface. Surface focus offers a balanced combination of penetration and weld width, making it suitable for many general-purpose welding applications. Negative focus typically provides the deepest penetration by concentrating energy beneath the surface and promoting stable keyhole formation. Selecting the appropriate focus position allows manufacturers to optimize penetration depth, improve weld quality, and achieve reliable performance across a wide range of welding conditions.
Effects of Focus on Weld Width and Geometry
While weld penetration is often the primary measure of laser welding performance, weld width and overall weld geometry are equally important factors in determining weld quality. Weld geometry influences mechanical strength, stress distribution, appearance, dimensional accuracy, and resistance to defects. Because laser beam focus controls how energy is distributed within the workpiece, it has a direct impact on the size and shape of the weld bead.
Adjusting the focal position changes the laser spot size and power density at the material surface and throughout the weld zone. These changes affect molten pool behavior, heat flow patterns, and solidification characteristics, ultimately determining weld width, weld profile, and the depth-to-width relationship of the finished weld. Understanding these effects is essential for producing welds that meet both structural and aesthetic requirements.
Weld Width Control
Weld width refers to the distance across the weld bead at the material surface. It is one of the most visible characteristics of a weld and serves as an important indicator of how heat is distributed during the welding process.
Laser beam focus significantly influences weld width because it affects the size of the area receiving concentrated energy. When the beam is tightly focused, energy is concentrated into a smaller spot, resulting in a narrower molten pool and a narrower weld bead. This is often desirable in applications requiring precision, minimal heat input, and reduced distortion.
As the focal point moves away from the optimal position, the laser spot size increases and energy spreads over a larger area. This broader heat distribution creates a wider molten pool and consequently a wider weld bead. Positive focus conditions, where the focal point is above the workpiece surface, frequently produce wider welds because the beam diverges before reaching the material.
Weld width must be carefully controlled because both excessively narrow and excessively wide welds can create problems. Narrow welds may not provide adequate joint coverage or fusion, while overly wide welds can increase heat input, enlarge the heat-affected zone, and contribute to distortion. Proper focus adjustment helps achieve the desired balance between weld width and penetration.
In automated manufacturing environments, maintaining a consistent focus is particularly important because even small changes in beam position can cause noticeable variations in weld width and overall weld appearance.
Weld Profile Shape
Weld profile shape refers to the cross-sectional contour of the weld bead, including its depth, curvature, reinforcement, and fusion characteristics. The profile shape is a critical factor because it affects load distribution, fatigue resistance, and weld integrity.
Laser beam focus strongly influences weld profile development by controlling how energy enters and spreads through the material. Different focus positions create distinct weld shapes.
When the beam is focused near or below the surface, energy penetrates more deeply into the material. This often produces narrow, deep weld profiles that are characteristic of keyhole welding. Such profiles are beneficial when strong fusion and high penetration efficiency are required.
In contrast, positive focus conditions typically generate broader and shallower weld profiles. Since the energy is distributed over a larger surface area, more melting occurs near the top of the workpiece, resulting in wider beads with reduced penetration depth.
The shape of the weld profile also affects stress concentration. Smooth, uniform profiles generally distribute loads more effectively and reduce the likelihood of crack initiation. Irregular profiles caused by improper focus may create localized stress points that can weaken the weld under cyclic loading conditions.
Additionally, focus position influences the transition between the weld bead and the surrounding base material. Proper focus settings help create smooth fusion boundaries and consistent bead contours, improving both mechanical performance and visual appearance.
Aspect Ratio
Aspect ratio is the relationship between weld penetration depth and weld width. It is commonly used to evaluate the efficiency and characteristics of a laser weld. A high aspect ratio indicates a deep, narrow weld, while a low aspect ratio describes a shallow, wide weld.
Laser welding is well known for its ability to produce high-aspect-ratio welds, particularly when operating in keyhole mode. Beam focus plays a central role in achieving these weld characteristics.
When the focal point is positioned at or slightly below the material surface, power density increases and promotes deep penetration. This generally results in higher aspect ratios because penetration depth increases faster than weld width. High-aspect-ratio welds are often desirable in structural applications because they maximize fusion while minimizing heat input and distortion.
Positive focus conditions usually produce lower aspect ratios. Although weld width increases, penetration depth tends to decrease due to lower power density. The resulting welds are broader and shallower, making them more suitable for thin materials or applications where deep penetration is unnecessary.
The optimal aspect ratio depends on the application. Extremely high aspect ratios may create challenges related to keyhole stability, porosity, or cracking, while very low aspect ratios may indicate insufficient penetration and reduced joint strength. Therefore, focus adjustment is often used to achieve the aspect ratio best suited to the material, joint design, and performance requirements.
Careful control of aspect ratio also contributes to process repeatability by ensuring consistent weld dimensions across production runs.
Laser beam focus has a direct and significant influence on weld width and overall weld geometry. By controlling the concentration and distribution of laser energy, the focus position determines the size of the molten pool and the resulting weld bead dimensions. Proper focus adjustment allows manufacturers to achieve the desired weld width while minimizing unnecessary heat input and distortion.
Focus position also affects weld profile shape and aspect ratio, two characteristics that play major roles in weld performance. Deeper focus positions generally produce narrow, high-aspect-ratio welds with greater penetration, while positive focus tends to create wider and shallower weld profiles. Because weld geometry influences strength, fatigue resistance, appearance, and process stability, selecting the correct focus position is essential for producing consistent, high-quality laser welds that meet both functional and manufacturing requirements.
Effects of Focus on Weld Defects
Laser welding is capable of producing high-quality, precise, and repeatable welds, but achieving these results depends heavily on proper control of process parameters. Among these parameters, laser beam focus is one of the most critical because it directly influences energy concentration, heat distribution, molten pool behavior, and keyhole stability. When the focal position is correctly adjusted, the welding process remains stable and produces sound welds with minimal imperfections. However, when the beam is improperly focused, various weld defects can develop.
Many common welding defects originate from either insufficient or excessive energy input caused by incorrect focus settings. Poor focus can affect penetration depth, disrupt molten metal flow, destabilize the keyhole, and alter cooling conditions. These changes increase the likelihood of defects that reduce weld strength, durability, appearance, and overall product quality. Understanding the relationship between beam focus and defect formation is essential for preventing welding problems and maintaining consistent production performance.
Porosity
Porosity refers to the presence of small gas-filled voids trapped within the weld metal during solidification. It is one of the most common defects encountered in laser welding and can significantly reduce mechanical strength, fatigue resistance, and leak-tightness.
Beam focus plays a major role in porosity formation because it influences keyhole stability and molten pool dynamics. When the beam is properly focused, a stable keyhole allows vaporized material and gases to escape efficiently from the weld zone. The molten pool remains sufficiently fluid, enabling trapped gases to rise to the surface before solidification occurs.
Improper focus can destabilize the keyhole. If the beam is excessively focused or focused too deeply below the surface, the keyhole may fluctuate or collapse intermittently. These instabilities can trap vapor bubbles inside the molten metal, which later become pores as the weld solidifies.
Similarly, if the beam is too far out of focus, insufficient energy concentration may prevent proper molten pool development and gas escape. In both cases, the likelihood of porosity increases. Maintaining optimal focus is therefore essential for achieving stable keyhole behavior and minimizing pore formation.
Lack of Fusion
Lack of fusion occurs when the weld metal fails to fully bond with the base material or adjacent weld passes. This defect creates weak areas within the joint and can significantly reduce load-carrying capacity.
One of the primary causes of lack of fusion in laser welding is insufficient penetration resulting from improper beam focus. When the focal point is positioned too far above the workpiece or when the beam becomes excessively defocused, power density decreases substantially. The reduced energy concentration may not generate enough heat to melt the material completely across the joint interface.
As a result, portions of the base material remain unmelted, creating discontinuities within the weld. These unfused regions can act as crack initiation sites under mechanical loading and may lead to premature joint failure.
Focus-related lack of fusion is particularly problematic when welding thicker materials or complex joint configurations that require deep penetration. Accurate focus adjustment helps ensure complete melting and proper metallurgical bonding throughout the weld zone.
Burn-Through
Burn-through occurs when excessive heat input causes complete melting through the material thickness, resulting in holes, excessive root reinforcement, or severe material loss.
This defect is often associated with excessive power density caused by incorrect focus settings. When the beam is focused too tightly or when the focal point is positioned in a way that concentrates excessive energy within a thin workpiece, the material may melt faster than it can be controlled by the welding process.
Thin sheets and delicate components are particularly susceptible to burn-through because they have limited capacity to absorb and dissipate heat. In such cases, a highly concentrated beam can rapidly penetrate the entire material thickness.
Excessive burn-through not only weakens the joint but can also negatively affect dimensional accuracy and surface appearance. Careful focus adjustment helps distribute energy appropriately and prevents overheating, especially when welding thin materials or components with variable thicknesses.
Undercut
The undercut is a groove or depression that forms along the edge of the weld where material has been melted away but not adequately filled during solidification. This defect reduces the effective cross-sectional area of the joint and can create stress concentration points.
Beam focus influences undercut formation through its effect on heat distribution and molten metal flow. When the focal position generates excessively high power density, the edges of the weld may melt rapidly while molten metal is displaced toward the center of the weld pool.
If insufficient molten material remains to refill the melted edge regions before solidification, undercut defects can develop. High welding speeds combined with improper focus can further increase the risk by limiting the time available for molten metal redistribution.
Incorrect focus may also create unstable molten pool conditions that contribute to uneven bead formation and localized edge erosion. Maintaining an appropriate focal position promotes balanced melting and smooth weld bead transitions, reducing the likelihood of undercut.
Cracking
Cracking is one of the most serious welding defects because it can significantly compromise structural integrity and lead to catastrophic failure under service conditions. Cracks may occur during solidification, cooling, or later in the component’s operational life.
Although cracking is influenced by material composition and residual stress levels, beam focus can indirectly contribute to crack formation through its impact on heat input and cooling behavior.
When the beam is excessively focused, extremely high localized temperatures may develop. These temperatures can create steep thermal gradients and rapid cooling rates, generating significant thermal stresses within the weld and surrounding material. If these stresses exceed the material’s ability to accommodate them, cracks may form.
Conversely, improper focus that produces inconsistent penetration or irregular weld geometry may create localized stress concentrations that increase crack susceptibility. Porosity, lack of fusion, and undercut defects caused by poor focus can further promote crack initiation and propagation.
Proper focus adjustment helps establish stable thermal conditions, uniform weld geometry, and controlled solidification behavior, all of which contribute to reducing crack formation.
Laser beam focus has a direct influence on the occurrence of many common welding defects because it controls energy concentration, heat input, molten pool stability, and keyhole behavior. When the focal position is optimized, the welding process remains stable and produces sound welds with minimal imperfections. However, incorrect focus settings can disrupt these conditions and significantly increase the risk of defects.
Porosity, lack of fusion, burn-through, undercut, and cracking are all closely linked to focus-related changes in power density and thermal behavior. Insufficient focus may lead to poor penetration and incomplete fusion, while excessive focus can create overheating, unstable keyholes, and excessive thermal stresses. By carefully selecting and maintaining the proper focal position, manufacturers can minimize defect formation, improve weld consistency, and achieve stronger, more reliable laser-welded joints.
Influence of Focus on Mechanical Properties
The ultimate goal of any welding process is not only to create a visually acceptable joint but also to achieve the mechanical performance required for the intended application. In laser welding, mechanical properties are closely linked to weld quality, penetration depth, microstructure, defect formation, and residual stress distribution. Since laser beam focus directly influences all of these factors, it plays a crucial role in determining the strength and durability of the finished weld.
Proper focus adjustment ensures efficient energy transfer, stable weld formation, and controlled cooling conditions. These factors help produce sound welds with uniform microstructures and minimal defects. Conversely, improper focus can result in incomplete fusion, porosity, excessive heat input, or unfavorable metallurgical changes that weaken the joint. As a result, beam focus has a direct impact on key mechanical properties such as tensile strength, fatigue resistance, impact toughness, and corrosion resistance.
Tensile Strength
Tensile strength is one of the most important measures of weld performance because it indicates the maximum load a welded joint can withstand before failure. The tensile strength of a laser weld depends largely on penetration depth, fusion quality, weld geometry, and the presence of internal defects.
Beam focus affects tensile strength by controlling energy concentration and penetration capability. When the focal position is optimized, sufficient energy is delivered to achieve complete fusion between the joined materials. This creates a strong metallurgical bond capable of transferring loads efficiently across the weld.
Proper focus also helps produce consistent weld geometry and minimizes defects such as porosity and lack of fusion, both of which can significantly reduce tensile performance. A fully penetrated weld with a uniform cross-section generally exhibits higher tensile strength than a shallow or irregular weld.
In contrast, incorrect focus settings may reduce penetration depth or create discontinuities within the weld. These imperfections act as stress concentration points and can cause premature failure under tensile loading. Excessive heat input resulting from poor focus may also alter the microstructure and negatively affect mechanical performance.
By maintaining the correct focus position, manufacturers can maximize joint strength and ensure reliable load-bearing capacity.
Fatigue Resistance
Fatigue resistance refers to a material’s ability to withstand repeated cyclic loading over an extended period. In many engineering applications, fatigue performance is more critical than static strength because components are often subjected to continuous vibration, fluctuating loads, or repeated stress cycles.
Laser beam focus influences fatigue resistance through its effects on weld geometry, surface quality, defect formation, and residual stress distribution. Properly focused beams produce smooth weld profiles with gradual transitions between the weld bead and base material. These smooth geometries reduce stress concentrations and improve fatigue life.
Defects associated with improper focus, such as porosity, undercut, lack of fusion, and microcracks, can significantly decrease fatigue resistance. Even small imperfections may serve as initiation sites for fatigue cracks that gradually propagate under repeated loading.
Focus position also affects cooling rates and residual stress development. Excessive thermal gradients caused by improper focus may generate residual tensile stresses that accelerate fatigue crack growth. Conversely, controlled heat input and stable weld formation help improve resistance to cyclic loading.
As a result, maintaining optimal focus conditions is essential for producing laser welds capable of achieving long service lives in demanding applications.
Impact Toughness
Impact toughness describes a material’s ability to absorb energy and resist fracture under sudden or dynamic loading conditions. This property is particularly important in structures exposed to shocks, impacts, or low-temperature environments.
The impact toughness of a laser weld is influenced by microstructure, grain size, weld integrity, and the presence of defects. Since beam focus affects heat input and cooling behavior, it has a direct impact on these characteristics.
When focus is properly controlled, the weld experiences balanced heating and cooling conditions that promote uniform microstructural development. Rapid but controlled cooling often results in fine-grain structures that contribute to improved toughness and strength.
Improper focus can create unfavorable thermal conditions that lead to excessive hardness, brittle microstructures, or non-uniform grain growth. In addition, defects such as porosity and lack of fusion reduce the ability of the weld to absorb impact energy because they act as crack initiation sites during sudden loading.
The relationship between focus and impact toughness is especially important when welding high-strength steels, stainless steels, and other alloys, where thermal cycles significantly influence material behavior.
Corrosion Resistance
Corrosion resistance is a critical consideration in applications involving exposure to moisture, chemicals, marine environments, or aggressive industrial conditions. Although corrosion resistance is primarily determined by material composition, welding conditions can significantly influence how a welded joint performs in corrosive environments.
Laser beam focus affects corrosion resistance through its influence on weld microstructure, surface condition, heat-affected zone characteristics, and defect formation. Proper focus helps create uniform welds with minimal porosity, smooth surface profiles, and controlled thermal effects.
When the beam is improperly focused, excessive heat input or unstable weld formation may alter the material’s microstructure and reduce corrosion resistance. For example, excessive thermal exposure can lead to undesirable phase transformations, sensitization in stainless steels, or localized compositional changes that increase susceptibility to corrosion.
Defects such as pores, cracks, and undercuts also create sites where moisture, chemicals, or contaminants can accumulate. These localized areas often become initiation points for corrosion attack and may accelerate degradation over time.
Maintaining optimal focus conditions helps preserve the material’s corrosion-resistant properties by minimizing defects and promoting uniform metallurgical characteristics throughout the weld zone.
Laser beam focus has a significant influence on the mechanical properties of welded joints because it directly affects penetration depth, weld integrity, microstructure development, and defect formation. Proper focus adjustment ensures efficient energy concentration and stable weld formation, creating strong and reliable joints capable of meeting demanding performance requirements.
The effects of focus extend beyond simple weld appearance. Tensile strength depends on achieving complete fusion and adequate penetration, while fatigue resistance is strongly influenced by weld geometry and defect control. Impact toughness is affected by the thermal conditions created during welding, and corrosion resistance depends on maintaining favorable microstructural characteristics and minimizing surface imperfections. By carefully controlling beam focus, manufacturers can optimize these mechanical properties and produce laser welds that deliver long-term strength, durability, and reliability in service.
Focus Considerations for Different Materials
Laser beam focus is a critical parameter in all welding applications, but the optimal focus position is not the same for every material. Different metals possess unique physical and metallurgical properties, including reflectivity, thermal conductivity, melting temperature, and absorption characteristics. These properties influence how laser energy interacts with the material and determine the most effective focal position for achieving high-quality welds.
A focus setting that produces excellent results on one material may generate poor penetration, excessive spatter, or weld defects on another. Therefore, understanding the relationship between material characteristics and beam focus is essential for optimizing weld quality, productivity, and process stability. Carbon steel, stainless steel, aluminum, copper, and titanium each present distinct welding challenges that require specific focus strategies.
Carbon Steel
Carbon steel is one of the most commonly welded materials and is generally considered highly compatible with laser welding. Compared with many non-ferrous metals, carbon steel absorbs laser energy relatively well, making it easier to achieve stable weld formation and consistent penetration.
For most carbon steel applications, the focal point is positioned at or slightly below the workpiece surface. This arrangement provides sufficient power density to promote keyhole formation and achieve deep penetration while maintaining stable molten pool behavior.
Carbon steel typically tolerates a wider range of focus positions than highly reflective materials. However, improper focus can still lead to common welding defects such as lack of fusion, excessive penetration, undercut, or porosity. Negative focus settings are frequently used for thicker sections because they direct more energy into the material and improve penetration efficiency.
Careful focus control is particularly important when welding high-carbon steels, as excessive heat concentration may increase cooling rates and promote the formation of hard, brittle microstructures that are more susceptible to cracking.
Stainless Steel
Stainless steel is widely used in industries that require corrosion resistance, strength, and aesthetic appearance. Laser welding is often preferred for stainless steel because it produces narrow heat-affected zones and minimizes distortion.
In many stainless steel applications, the focal point is positioned on or slightly below the material surface. This focus arrangement provides a good balance between penetration depth and weld appearance while maintaining stable keyhole formation.
Because stainless steel generally has lower thermal conductivity than carbon steel, heat remains concentrated near the weld zone for a longer period. As a result, excessive focus concentration can generate excessive temperatures, increasing the risk of spatter, distortion, or microstructural changes that may affect corrosion resistance.
Focus control is especially important for austenitic stainless steels. Improper thermal management can contribute to sensitization, a condition in which chromium carbides form along grain boundaries and reduce corrosion resistance. Proper focus adjustment helps minimize unnecessary heat input and preserve the material’s protective properties.
For thin-gauge stainless steel, a slightly positive or surface focus may be preferred to prevent excessive penetration and maintain a smooth weld appearance.
Aluminum
Aluminum presents greater challenges in laser welding due to its high reflectivity and high thermal conductivity. A significant portion of the incoming laser energy may be reflected, particularly at lower temperatures, making efficient energy absorption more difficult.
To overcome these challenges, laser welding of aluminum often requires highly precise focus positioning. A tightly focused beam is typically used to achieve the high power density necessary for rapid melting and stable keyhole formation. In many cases, the focal point is placed slightly below the material surface to improve penetration and energy utilization.
Because aluminum conducts heat rapidly away from the weld zone, maintaining adequate power density is essential. Even small focus deviations can significantly reduce penetration depth and process stability.
Aluminum is also susceptible to porosity because dissolved hydrogen can become trapped during solidification. Improper focus may destabilize the keyhole and increase the likelihood of pore formation. Careful focus optimization helps maintain a stable welding process and improve weld integrity.
For thicker aluminum sections, negative focus settings are often preferred because they support deeper penetration and more efficient energy transfer into the material.
Copper
Copper is one of the most challenging materials to laser weld because of its extremely high reflectivity and exceptional thermal conductivity. These characteristics make it difficult to concentrate sufficient energy within the material to initiate and maintain welding.
Achieving successful copper welds often requires very accurate focus control. Small changes in focal position can have a significant impact on energy absorption and weld quality. In many applications, the focal point is positioned slightly below the surface to maximize energy concentration within the material.
The use of high-brightness fiber lasers has improved copper welding capabilities, but focus accuracy remains critical. Insufficient focus concentration can result in poor penetration, unstable keyhole formation, and inconsistent weld quality.
Because copper rapidly dissipates heat, maintaining a stable keyhole is often challenging. Proper focus helps sustain the energy density required for continuous melting and deep penetration. Incorrect focus may increase spatter, porosity, and lack-of-fusion defects.
When welding copper components used in electrical systems, battery manufacturing, and electronic devices, precise focus control is essential for ensuring both mechanical strength and electrical conductivity.
Titanium
Titanium is valued for its high strength-to-weight ratio, excellent corrosion resistance, and outstanding performance in aerospace, medical, and high-performance engineering applications. Laser welding is commonly used for titanium because it offers precise heat control and minimal distortion.
Titanium generally absorbs laser energy effectively, allowing stable weld formation when appropriate focus settings are used. In many applications, the focal point is positioned at or slightly below the surface to achieve adequate penetration and narrow weld profiles.
One of the primary concerns when welding titanium is contamination from oxygen, nitrogen, and hydrogen at elevated temperatures. Although focus itself does not directly cause contamination, improper focus can generate excessive heat input, increasing the time the weld remains at temperatures where contamination becomes more likely.
Accurate focus adjustment helps minimize the heat-affected zone and maintain favorable cooling conditions. This contributes to improved mechanical properties and reduces the risk of undesirable microstructural changes.
For critical aerospace and medical components, maintaining precise focus is essential because even minor variations in weld quality can affect structural performance and long-term reliability.
The optimal laser beam focus position varies significantly among different materials because each metal responds differently to laser energy. Factors such as reflectivity, thermal conductivity, melting behavior, and metallurgical sensitivity influence how energy is absorbed and distributed during welding. As a result, focus settings must be tailored to the specific material being welded rather than applying a single approach to all applications.
Carbon steel and stainless steel generally offer relatively stable welding conditions and broader focus tolerances, while aluminum and copper require more precise focus control due to their high reflectivity and thermal conductivity. Titanium benefits from accurate focus positioning that limits heat input and preserves material properties. By understanding the unique focus requirements of each material, manufacturers can optimize penetration, reduce defects, improve mechanical performance, and consistently produce high-quality laser welds across a wide range of industrial applications.
Factors Influencing Focus Stability
Achieving the correct laser beam focus is essential for producing consistent, high-quality welds. However, establishing the optimal focal position is only part of the challenge. Equally important is maintaining focus and stability throughout the welding process. Even small variations in focal position can alter power density, penetration depth, weld geometry, and defect formation, leading to inconsistent weld quality.
Focus stability can be affected by numerous optical, thermal, mechanical, and operational factors. In high-precision laser welding applications, changes measured in fractions of a millimeter may significantly influence welding performance. Therefore, understanding the factors that cause focus drift or instability is critical for maintaining process reliability and achieving repeatable production results. Common sources of focus instability include lens contamination, thermal lens effects, mechanical misalignment, workpiece position variation, and robot positioning errors.
Lens Contamination
Lens contamination is one of the most common causes of focus instability in laser welding systems. During welding, fumes, metal vapor, spatter, dust, and airborne particles can accumulate on protective windows and focusing optics.
When contaminants build up on optical surfaces, they interfere with the transmission and distribution of laser energy. Instead of passing cleanly through the lens system, portions of the laser beam may be absorbed, scattered, or distorted. This can alter the beam profile and shift the effective focal point away from its intended position.
Contaminated optics often lead to larger spot sizes, reduced power density, and inconsistent penetration. In severe cases, localized heating of contaminated areas may damage optical components and further degrade beam quality.
The effects of contamination typically develop gradually, making them difficult to detect without routine inspection. As contamination increases over time, weld quality may deteriorate through reduced penetration, increased porosity, unstable keyhole behavior, or inconsistent weld geometry.
Regular cleaning, protective gas systems, and scheduled replacement of protective windows are important measures for maintaining focus stability and preserving welding performance.
Thermal Lens Effects
Thermal lensing is an optical phenomenon that occurs when laser welding system components heat up during operation. As optical materials absorb a small portion of the laser energy, temperature variations develop within the lens or protective window.
These temperature changes alter the refractive index of the optical material, effectively changing its focusing characteristics. As a result, the focal length of the optical system may shift during operation, causing the actual focus position to move away from its calibrated location.
Thermal lens effects are particularly significant in high-power laser welding systems where substantial energy passes through optical components for extended periods. The amount of focus shift depends on factors such as laser power, operating duration, lens material, cooling efficiency, and optical cleanliness.
Even minor thermal-induced focus changes can influence penetration depth and weld consistency, especially in applications requiring tight dimensional tolerances. Thermal lensing may also contribute to gradual process drift, where weld quality changes over the course of a production run.
To minimize thermal lens effects, modern laser welding systems often incorporate advanced cooling systems, thermally stable optical materials, and beam monitoring technologies that compensate for focus drift.
Mechanical Misalignment
Mechanical misalignment occurs when components within the laser beam delivery system are not positioned correctly relative to one another. This may involve misalignment of lenses, mirrors, beam delivery fibers, welding heads, or mounting structures.
Because laser welding relies on precise beam positioning, even small mechanical deviations can alter the focal position and beam quality. Vibration, equipment wear, accidental impacts, thermal expansion, and improper maintenance procedures can all contribute to misalignment.
Misaligned optical components may cause the beam to enter the focusing lens at an incorrect angle, resulting in an offset focal point or distorted spot shape. These changes can reduce energy concentration and create inconsistent welding conditions.
Mechanical misalignment often manifests as variations in penetration depth, weld width, bead symmetry, or weld location. In automated production environments, these inconsistencies can lead to significant quality issues if not identified and corrected promptly.
Routine calibration, alignment verification, and preventive maintenance are essential for maintaining stable beam focus and ensuring consistent welding performance.
Workpiece Position Variation
Focus stability depends not only on the laser welding system itself but also on the position of the workpiece relative to the focal point. Variations in workpiece height, flatness, or positioning can effectively change the distance between the laser head and the material surface.
Even when the laser welding system maintains a perfectly stable focal point, movement of the workpiece can create unintended focus shifts. For example, a workpiece positioned slightly higher than expected may move the surface closer to the focal point, while a lower position may create a defocused condition.
Workpiece position variation can result from manufacturing tolerances, fixture inaccuracies, thermal distortion, residual stresses, or material warping. Thin sheet materials are particularly susceptible because they may deform during handling or welding.
Changes in workpiece position can cause fluctuations in penetration depth, weld width, and keyhole stability. In severe cases, these variations may lead to incomplete fusion, excessive penetration, or inconsistent weld appearance.
To address these challenges, many laser welding systems utilize height sensors, seam tracking systems, and adaptive focus controls that automatically adjust focal position based on real-time measurements.
Robot Accuracy
Robotic welding systems are widely used in modern manufacturing because they offer high productivity, flexibility, and repeatability. However, robot positioning accuracy and repeatability directly influence focus stability.
The robot must maintain the correct stand-off distance between the laser head and the workpiece throughout the welding process. Any deviation in robotic positioning can alter the focal position relative to the material surface.
Several factors can affect robot accuracy, including calibration errors, mechanical wear, thermal expansion, payload changes, joint backlash, and dynamic motion effects. Over long production cycles, these factors may introduce small positioning errors that accumulate and impact welding quality.
Complex three-dimensional weld paths present additional challenges because maintaining consistent focus requires accurate control of both position and orientation. If the robot fails to follow the programmed path precisely, focus conditions may vary along the weld seam.
Modern robotic laser welding systems often incorporate vision systems, laser trackers, seam-finding technologies, and real-time motion correction algorithms to improve positioning accuracy and maintain stable focus conditions.
Focus stability is essential for achieving consistent weld quality in laser welding applications. Even when the optimal focus position has been established, various operational and environmental factors can cause the focal point to shift during production. These shifts affect power density, penetration depth, weld geometry, and defect formation, ultimately influencing the quality and reliability of the finished weld.
Lens contamination, thermal lens effects, mechanical misalignment, workpiece position variation, and robot positioning errors are among the most significant causes of focus instability. Each factor can alter the relationship between the laser beam and the workpiece, leading to changes in energy delivery and welding performance. By implementing proper maintenance procedures, monitoring systems, calibration practices, and adaptive control technologies, manufacturers can maintain stable focus conditions and ensure repeatable, high-quality laser welding results across a wide range of applications.
Methods for Measuring and Controlling Focus
Achieving the correct laser beam focus is essential for producing high-quality welds, but maintaining that focus consistently throughout the welding process is equally important. Even minor deviations in focal position can alter power density, penetration depth, weld geometry, and defect formation. As laser welding applications become increasingly precise and automated, manufacturers rely on advanced measurement and control technologies to ensure that the focal point remains in the optimal position.
Focus measurement and control methods serve two primary purposes. First, they verify that the laser beam is properly focused during system setup and maintenance. Second, they provide real-time monitoring and adjustment during production to compensate for changes caused by thermal effects, workpiece variations, mechanical movement, or equipment wear. By combining measurement tools with automated control systems, manufacturers can improve weld consistency, reduce defects, and enhance overall process reliability.
Focus Position Testing
Focus position testing is one of the most fundamental methods used to determine the optimal focal location for a laser welding process. It involves evaluating welding performance at different focal positions and identifying the setting that produces the desired penetration, weld geometry, and overall quality.
A common approach is the focus scan test, in which a series of welds is produced while systematically adjusting the focal position above and below the workpiece surface. The resulting welds are then examined for penetration depth, bead shape, defect formation, and mechanical performance.
Focus testing may also involve destructive and non-destructive inspection methods. Cross-sectional analysis can reveal penetration profiles and weld geometry, while techniques such as visual inspection, radiographic testing, and ultrasonic testing can help identify internal defects.
Because optimal focus settings vary according to material type, thickness, laser power, and welding speed, focus position testing is often performed during process development and qualification. The data collected provides a baseline for future production and quality control activities.
Regular focus verification testing is also valuable for detecting gradual process drift caused by lens contamination, optical wear, or equipment misalignment.
Beam Profilers
Beam profilers are specialized instruments designed to measure the characteristics of a laser beam. They provide detailed information about beam shape, intensity distribution, spot size, and focal position, making them valuable tools for laser welding system setup and maintenance.
A beam profiler typically captures the laser beam using a camera-based sensor, scanning device, or detector array. The resulting measurements allow operators to evaluate beam quality and verify that the optical system is producing the expected focus conditions.
One of the primary advantages of beam profiling is its ability to identify issues that may not be visible during normal welding operations. Optical contamination, lens damage, misalignment, and thermal distortion can all affect beam quality and shift the focal point. Beam profilers help detect these problems before they lead to welding defects.
Advanced beam profiling systems can generate detailed three-dimensional representations of beam intensity distribution and monitor changes in beam characteristics over time. This information supports preventive maintenance programs and helps ensure that the laser consistently operates within specified parameters.
Because beam profilers provide highly accurate measurements, they are widely used in research laboratories, process development environments, and high-precision manufacturing applications.
Autofocus Systems
Autofocus systems automatically adjust the focal position during welding to maintain optimal energy concentration on the workpiece. These systems are particularly useful in automated manufacturing environments where workpiece dimensions, surface heights, or welding paths may vary.
An autofocus system continuously monitors the relationship between the laser head and the workpiece surface. When changes are detected, the system adjusts the position of the focusing optics or welding head to maintain the desired focal distance.
Modern autofocus systems may use optical sensors, laser triangulation devices, distance measurement technologies, or integrated process monitoring systems to determine focus conditions in real time. The control system then makes rapid adjustments without interrupting the welding process.
The primary benefit of autofocus technology is its ability to compensate for variations that would otherwise affect weld quality. This is especially important when welding large components, complex geometries, curved surfaces, or assemblies with dimensional tolerances.
By maintaining consistent focus throughout the welding process, autofocus systems improve penetration consistency, reduce defect rates, and increase overall process stability.
Vision-Based Systems
Vision-based systems use cameras and image-processing software to monitor welding conditions and support focus control. These systems have become increasingly common in advanced laser welding applications because they provide real-time information about both the workpiece and the welding process.
A vision system can observe weld seam location, joint alignment, surface condition, and welding head position. Using image analysis algorithms, the system can detect deviations that may affect focus stability and generate corrective actions when necessary.
Some vision-based systems are capable of tracking seam position and adjusting the welding path automatically. Others monitor the weld pool, keyhole behavior, or process emissions to evaluate welding conditions indirectly and identify potential focus-related problems.
Because cameras can capture information continuously during production, vision-based systems provide valuable feedback for quality control and process optimization. They help detect issues such as misalignment, height variation, and positioning errors before significant weld defects occur.
When integrated with robotic welding systems, vision technologies contribute to improved accuracy, repeatability, and overall focus control.
Capacitive Height Sensors
Capacitive height sensors are widely used to measure the distance between the welding head and the workpiece surface. These sensors operate by detecting changes in electrical capacitance as the gap between the sensor and the material varies.
Because focal position depends directly on the distance from the focusing optics to the workpiece, capacitive sensors provide an effective method for maintaining consistent focus during welding. The sensor continuously measures surface height and sends information to the control system, which adjusts the welding head position as needed.
Capacitive sensing is particularly useful for materials with slight surface irregularities, dimensional variations, or thermal distortion. The system can respond quickly to changing conditions and maintain a stable stand-off distance throughout the welding operation.
One of the major advantages of capacitive sensors is their high sensitivity and fast response time. They can detect very small height changes and provide precise feedback for automated focus control systems.
These sensors are commonly used in robotic welding cells, automated production lines, and high-precision manufacturing environments where maintaining accurate focus is critical to weld quality.
Accurate measurement and control of laser beam focus are essential for achieving consistent weld quality and maximizing process performance. Because focus position directly affects power density, penetration depth, weld geometry, and defect formation, manufacturers must ensure that the focal point remains within the optimal range throughout the welding process. Effective focus management begins with proper testing and verification and continues through continuous monitoring during production.
Focus position testing and beam profilers provide valuable information for system setup, calibration, and maintenance, while autofocus systems, vision-based technologies, and capacitive height sensors offer real-time control capabilities. Together, these methods help compensate for variations caused by workpiece positioning, thermal effects, equipment wear, and robotic movement. By implementing appropriate focus measurement and control strategies, manufacturers can improve weld consistency, reduce defects, increase productivity, and maintain the high standards required in modern laser welding applications.
Optimizing Focus for Different Welding Applications
The optimal laser beam focus position depends not only on the material being welded but also on the specific application requirements. Different industries and products demand different combinations of penetration depth, weld width, heat input, dimensional accuracy, and mechanical performance. As a result, focus settings that are effective for one application may be unsuitable for another.
Laser welding engineers must carefully adjust focal position to balance process stability, productivity, weld quality, and defect prevention. Factors such as material thickness, joint design, manufacturing tolerances, and performance requirements all influence the ideal focus strategy. Whether producing deep structural welds, precision medical components, or battery connections, proper focus optimization is essential for achieving reliable and repeatable results.
Thin Sheet Welding
Thin sheet welding is commonly used in industries such as automotive manufacturing, consumer electronics, appliances, and precision fabrication. Materials may range from fractions of a millimeter to several millimeters in thickness, making heat control a critical concern.
One of the primary challenges in thin sheet welding is preventing excessive penetration and burn-through. Because thin materials have limited thermal mass, they can rapidly overheat if laser energy is concentrated too intensely.
For this reason, the focal point is often positioned directly on the surface or slightly above the surface. Positive focus conditions can spread the laser energy over a slightly larger area, reducing power density while maintaining sufficient melting for proper fusion.
A carefully controlled focus position also helps minimize distortion, warping, and excessive heat-affected zones. Narrow weld beads and smooth surface finishes are particularly important in applications where appearance and dimensional accuracy are critical.
In high-speed production environments, maintaining stable focus is essential because even small deviations can quickly result in inconsistent penetration or material damage.
Thick Plate Welding
Thick plate welding requires significantly greater penetration depth than thin sheet applications. Industries such as shipbuilding, heavy machinery manufacturing, energy production, and structural fabrication often involve welding thick steel or alloy sections where joint strength is a primary concern.
To achieve deep penetration, the focal point is typically positioned slightly below the material surface. Negative focus conditions increase power density within the material and promote stable keyhole formation, allowing laser energy to penetrate deeper into the workpiece.
Deep penetration welding often benefits from high-aspect-ratio welds that maximize fusion while minimizing overall heat input. Proper focus positioning helps maintain keyhole stability and improves energy transfer efficiency.
However, excessive negative focus can destabilize the keyhole and increase the risk of porosity or irregular penetration profiles. Therefore, focus optimization must balance penetration requirements with process stability.
For very thick materials, focus settings are often combined with high-power lasers, beam oscillation techniques, or hybrid laser-arc welding processes to achieve the desired weld characteristics.
Dissimilar Metal Welding
Dissimilar metal welding involves joining materials with different physical, thermal, and metallurgical properties. Common examples include steel-to-aluminum, copper-to-aluminum, stainless steel-to-carbon steel, and various combinations used in automotive, aerospace, and electronics manufacturing.
Focus optimization is particularly challenging in these applications because each material absorbs and conducts heat differently. The focal position must be selected carefully to balance energy distribution between the two materials and avoid excessive melting of one side.
In many cases, the laser beam is intentionally offset toward the material with higher reflectivity or thermal conductivity to achieve more uniform heat input. Focus position may also be adjusted to control penetration depth and minimize the formation of brittle intermetallic compounds that can weaken the joint.
Stable focus is essential because small changes in energy distribution can significantly affect joint quality when materials respond differently to laser heating. Process development often involves extensive focus testing to identify the optimal conditions for each material combination.
The ability to precisely control beam focus is one of the reasons laser welding has become a preferred technology for many dissimilar metal joining applications.
Battery Manufacturing
Battery manufacturing has emerged as one of the fastest-growing applications for laser welding, particularly in the production of electric vehicle batteries, consumer electronics, and energy storage systems. These applications involve welding thin foils, tabs, busbars, and electrical connectors with extremely demanding quality requirements.
Battery components are often made from highly reflective and thermally conductive materials such as copper and aluminum. These materials require precise focus control to ensure stable energy absorption and consistent weld formation.
The focal point is typically positioned very accurately at or slightly below the material surface to maximize power density while avoiding excessive heat input. Maintaining precise focus is critical because even small defects can increase electrical resistance, reduce battery performance, or compromise long-term reliability.
Battery welding also demands exceptional repeatability due to the large number of welds produced in automated manufacturing lines. Advanced autofocus systems, vision-guided positioning, and real-time process monitoring are commonly used to maintain focus consistency.
As battery designs become more compact and energy-dense, focus optimization continues to play an increasingly important role in ensuring product quality and safety.
Medical Device Manufacturing
Medical device manufacturing requires some of the highest levels of welding precision found in modern industry. Laser welding is widely used for surgical instruments, implants, pacemakers, diagnostic equipment, catheters, and other miniature components.
These products often involve extremely small welds with tight dimensional tolerances and stringent quality requirements. Even minor focus errors can affect weld size, penetration depth, surface finish, and mechanical performance.
In many medical applications, the focal point is positioned directly on the surface or within a very narrow focus range to achieve precise energy delivery. The goal is to create strong, clean welds while minimizing thermal damage to surrounding material.
Focus stability is especially important when welding thin-walled components, miniature assemblies, or heat-sensitive materials. Excessive heat input can alter material properties, affect biocompatibility, or compromise device functionality.
Advanced laser welding systems used in medical manufacturing frequently incorporate high-resolution vision systems, autofocus capabilities, and precision motion control technologies to maintain optimal focus throughout the welding process.
The ability to achieve highly repeatable welds with minimal distortion makes laser welding an ideal solution for many medical device applications.
The optimal focus position in laser welding depends heavily on the specific application and its performance requirements. Different industries demand different combinations of penetration depth, weld geometry, heat input, dimensional accuracy, and process stability. As a result, focus settings must be carefully tailored to the application rather than relying on a single universal approach.
Thin sheet welding typically benefits from surface or slightly positive focus positions that reduce burn-through risk, while thick plate welding often requires negative focus to achieve deep penetration. Dissimilar metal welding demands precise energy distribution to accommodate differences in material behavior, and battery manufacturing relies on highly accurate focus control to ensure electrical and mechanical performance. Medical device manufacturing places even greater emphasis on precision and repeatability due to strict quality and safety requirements. By optimizing focus for each application, manufacturers can maximize weld quality, improve productivity, reduce defects, and achieve reliable long-term performance in a wide range of laser welding operations.
Best Practices for Maintaining Optimal Focus
Achieving the correct laser beam focus is essential for producing high-quality welds, but maintaining that focus over time is equally important. Even if laser welding systems are initially calibrated to the optimal focal position, various factors such as optical contamination, thermal effects, equipment wear, and workpiece variations can gradually affect focus accuracy. These changes may reduce power density, alter penetration depth, and increase the likelihood of weld defects.
To ensure consistent welding performance, manufacturers must implement systematic procedures for monitoring, verifying, and maintaining focus conditions. Effective focus management combines routine maintenance, equipment calibration, process monitoring, and operator awareness. By following established best practices, manufacturers can improve weld consistency, reduce downtime, extend equipment life, and maintain high production quality.
Regular Optical Inspection
Routine optical inspection is one of the most important preventive maintenance practices in laser welding. Optical components play a direct role in focusing laser energy, and even minor damage or contamination can significantly affect beam quality.
During inspections, operators should examine protective windows, focusing lenses, mirrors, beam delivery optics, and fiber connectors for signs of contamination, scratches, cracks, coating damage, or discoloration. These issues can alter beam transmission and shift the effective focal position.
Regular inspections allow potential problems to be identified before they affect weld quality. For example, a damaged protective window may cause beam distortion that leads to inconsistent penetration or unstable keyhole formation.
The frequency of inspections depends on production volume, welding environment, and material type. High-volume operations and applications that generate significant fumes or spatter may require more frequent inspections than cleaner manufacturing environments.
Establishing a documented inspection schedule helps ensure that optical issues are detected and corrected before they cause process instability.
Clean Optics Frequently
Optical cleanliness is critical for maintaining stable focus conditions. During laser welding, metal vapor, smoke, dust, oil residue, and spatter particles can accumulate on optical surfaces and gradually reduce system performance.
Contaminated optics absorb and scatter laser energy, altering beam characteristics and reducing power density at the focal point. As contamination increases, weld penetration, weld geometry, and overall process stability may become inconsistent.
Frequent cleaning helps maintain optimal beam transmission and prevents contamination from developing into more serious optical damage. Cleaning should be performed using approved procedures, specialized cleaning materials, and manufacturer-recommended solvents to avoid scratching delicate optical coatings.
Protective windows should receive particular attention because they are often the first optical components exposed to welding contaminants. In many systems, regularly replacing protective windows is more economical than allowing contamination to damage expensive focusing optics.
Maintaining clean optics not only improves focus stability but also extends the lifespan of optical components and reduces maintenance costs.
Verify Focus Position Periodically
Even when no obvious problems are visible, the actual focal position may gradually change over time due to thermal effects, optical wear, mechanical shifts, or equipment adjustments. Periodic focus verification helps ensure that the focal point remains where it is intended to be.
Focus position can be verified using focus scan tests, beam profiling equipment, calibration targets, or manufacturer-recommended testing procedures. These methods allow operators to confirm that the laser beam is producing the expected spot size and focal characteristics.
Regular verification is especially important after maintenance activities, optical component replacement, equipment relocation, or prolonged periods of operation. Any change in system configuration may affect focus accuracy.
Process qualification procedures often include scheduled focus verification as part of broader quality control programs. By identifying focus drift early, manufacturers can prevent weld defects before they occur and maintain consistent production performance.
Periodic verification also provides valuable historical data that can help identify trends related to equipment wear or process degradation.
Maintain Proper Stand-Off Distance
Stand-off distance refers to the distance between the laser welding head and the workpiece surface. Because focus position is directly related to this distance, maintaining consistent stand-off conditions is essential for stable welding performance.
Variations in stand-off distance effectively change the location of the focal point relative to the material. Even small deviations can alter power density and influence penetration depth, weld width, and keyhole stability.
Several factors can affect stand-off distance, including fixture inaccuracies, workpiece dimensional tolerances, thermal distortion, robotic positioning errors, and surface irregularities. Without proper control, these variations may lead to inconsistent weld quality.
Manufacturers often use precision fixturing, seam tracking systems, height control mechanisms, and automated sensing technologies to maintain stable stand-off distances. Capacitive sensors, laser distance sensors, and autofocus systems are particularly effective in applications involving complex geometries or varying surface heights.
Consistent stand-off distance ensures that the focal point remains in the intended position throughout the welding process.
Use High-Quality Optics
The quality of optical components has a direct impact on focus accuracy, beam quality, and long-term process stability. High-quality optics are manufactured to tighter tolerances and provide more consistent beam transmission characteristics than lower-grade alternatives.
Precision lenses, mirrors, and protective windows help maintain uniform spot size, minimize optical distortion, and ensure accurate focal positioning. High-quality optical coatings also improve laser transmission efficiency while reducing reflection losses and thermal loading.
Inferior optics may introduce beam irregularities, increased thermal effects, and reduced focus consistency. Over time, these issues can contribute to unstable welding conditions and increased defect rates.
Although premium optical components often involve higher initial costs, they typically provide better durability, longer service life, and lower maintenance requirements. The resulting improvements in welding performance often justify the investment, particularly in high-volume or high-precision manufacturing environments.
Selecting optics specifically designed for the laser wavelength and power level being used is also critical for achieving optimal results.
Implement Process Monitoring
Modern laser welding increasingly relies on process monitoring technologies to maintain focus stability and detect potential issues in real time. These systems provide continuous feedback that allows operators and automated controls to identify deviations before they affect weld quality.
Process monitoring may include beam diagnostics, weld pool observation, keyhole monitoring, optical emission analysis, seam tracking, temperature measurement, and focus monitoring systems. The information collected helps evaluate whether the welding process is operating within acceptable limits.
Advanced monitoring systems can automatically detect focus-related problems such as beam drift, contamination buildup, penetration changes, or positioning errors. In some cases, corrective actions can be implemented immediately through closed-loop control systems.
Real-time monitoring is particularly valuable in automated manufacturing environments where large numbers of welds are produced continuously. Early detection of process deviations reduces scrap rates, improves consistency, and minimizes costly production interruptions.
As laser welding technology continues to advance, integrated monitoring and adaptive control systems are becoming increasingly important tools for maintaining optimal focus conditions.
Maintaining optimal laser beam focus requires more than simply setting the correct focal position during initial process development. Focus conditions can change over time due to contamination, equipment wear, thermal effects, mechanical movement, and variations in workpiece positioning. Without proper maintenance and monitoring, these changes can reduce weld quality and increase the likelihood of defects.
A comprehensive focus maintenance strategy includes regular optical inspections, frequent cleaning of optical components, periodic verification of focal position, consistent stand-off distance control, the use of high-quality optics, and implementation of advanced process monitoring systems. Together, these practices help ensure stable energy delivery, consistent penetration, reliable weld geometry, and long-term process repeatability. By prioritizing focus maintenance, manufacturers can maximize the performance of their laser welding systems and consistently produce high-quality welds across a wide range of applications.
Summary
Laser beam focus is one of the most critical factors affecting weld quality in laser welding. Although parameters such as laser power, welding speed, shielding gas, and material properties all influence welding performance, the focal position ultimately determines how laser energy is delivered to the workpiece. By controlling the concentration of energy, beam focus directly affects heat generation, molten pool formation, keyhole stability, penetration depth, weld geometry, cooling behavior, and the overall integrity of the finished weld.
Throughout the welding process, even small changes in focus position can produce significant differences in weld characteristics. Positive focus typically creates wider and shallower welds, while negative focus promotes deeper penetration and higher aspect-ratio welds. Surface focus often provides a balanced combination of penetration and weld width. Selecting the appropriate focus position is therefore essential for achieving the desired weld profile and meeting application-specific requirements.
Proper focus control also plays a major role in preventing welding defects. Incorrect focal positioning can contribute to porosity, lack of fusion, burn-through, undercut, and cracking, all of which can compromise weld strength and reliability. In contrast, maintaining optimal focus helps ensure stable keyhole behavior, consistent energy distribution, and controlled solidification, reducing the likelihood of defect formation.
The influence of focus extends beyond weld appearance and penetration. Mechanical properties such as tensile strength, fatigue resistance, impact toughness, and corrosion resistance are closely linked to the thermal conditions created by the laser beam. Focus optimization helps produce sound welds with favorable microstructures, minimal residual stresses, and long-term durability.
Because different materials and applications have unique welding requirements, there is no universal focus setting. Carbon steel, stainless steel, aluminum, copper, titanium, thin-sheet components, thick structural sections, battery assemblies, and medical devices all require tailored focus strategies. Achieving consistent results also depends on maintaining focus stability through proper equipment maintenance, optical inspection, cleaning procedures, calibration, and real-time monitoring systems.
Ultimately, understanding and controlling laser beam focus is fundamental to maximizing weld quality, productivity, and process reliability. Manufacturers that prioritize focus optimization and stability can achieve stronger welds, fewer defects, improved mechanical performance, and more consistent production outcomes across a wide range of laser welding applications.
Get Laser Welding Solutions
Achieving high-quality laser welds requires more than simply selecting the right laser power or welding speed. As discussed throughout this article, laser beam focus plays a critical role in determining weld penetration, bead geometry, defect formation, mechanical properties, and overall process stability. To maximize welding performance, manufacturers need laser welding solutions that provide precise focus control, reliable beam delivery, and advanced process monitoring capabilities.
At Maxcool CNC, we specialize in the development and manufacturing of intelligent laser welding equipment designed to meet the diverse needs of modern industries. Whether you are welding carbon steel, stainless steel, aluminum, copper, titanium, or dissimilar metal combinations, our laser welding solutions are engineered to deliver exceptional precision, consistency, and productivity.

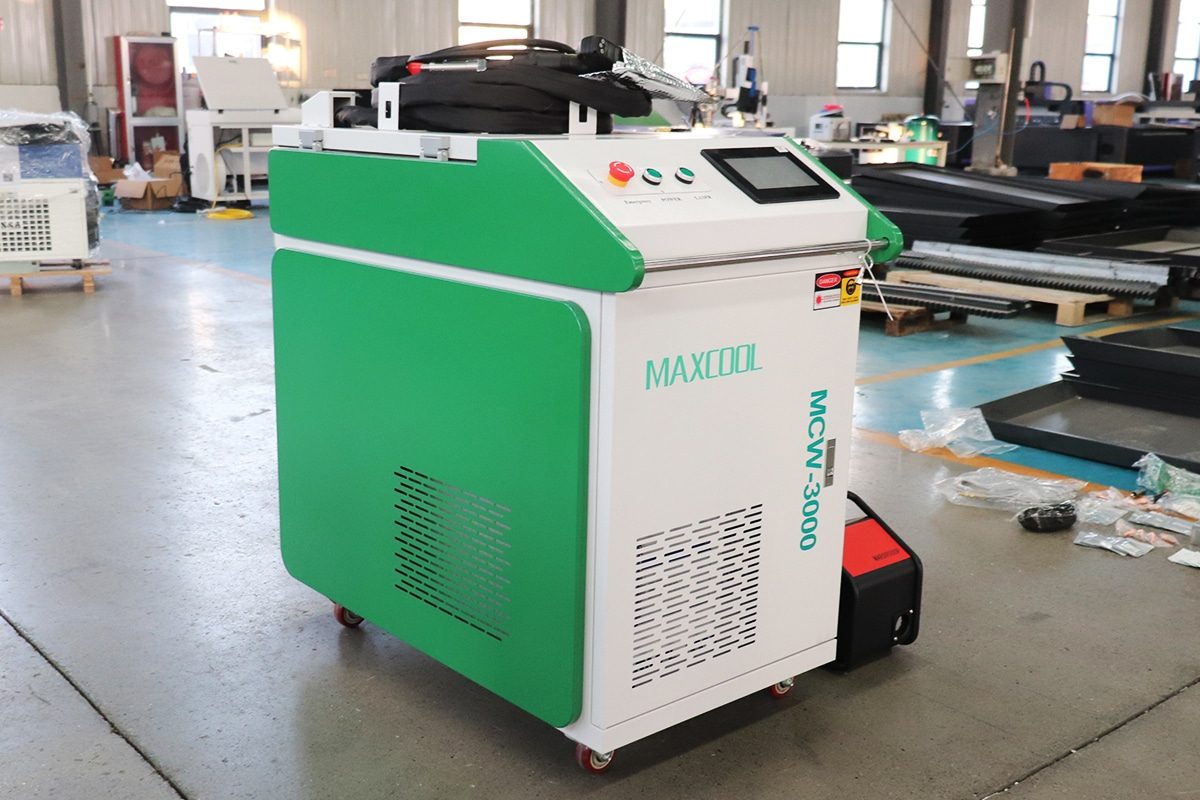

Our laser welding systems feature advanced fiber laser technology, high-performance optical components, and intelligent control systems that help maintain optimal beam focus throughout the welding process. From handheld laser welding machines for flexible fabrication tasks to fully automated robotic laser welding systems for high-volume production, Maxcool CNC provides solutions tailored to your specific application requirements.
We understand that every welding project presents unique challenges. Material type, thickness, joint design, production volume, and quality standards all influence the ideal welding configuration. Our experienced technical team works closely with customers to evaluate their production needs and recommend the most suitable laser welding solution. We can assist with equipment selection, process optimization, sample testing, parameter development, and after-sales technical support to help ensure successful implementation.
In addition to high-quality equipment, Maxcool CNC is committed to providing long-term value through reliable service, operator training, maintenance support, and continuous technical assistance. Our goal is to help manufacturers improve weld quality, reduce production costs, increase efficiency, and achieve consistent results across a wide range of applications.
If you are looking to enhance your welding capabilities with advanced laser technology, contact Maxcool CNC today. Our team is ready to provide customized laser welding solutions that help you achieve superior weld quality, greater productivity, and long-term manufacturing success.
