Guide to Laser Welding Thin Materials

Laser welding has become a cornerstone in the fabrication of thin materials due to its precision, speed, and versatility. As industries demand higher performance and finer tolerances, laser welding offers a solution that traditional welding methods struggle to match. Whether in automotive, aerospace, electronics, or medical device manufacturing, laser welding ensures clean, strong joints with minimal heat-affected zones, reducing the risk of material distortion or degradation. This process is especially critical when dealing with thin materials, where controlling heat input is paramount.
Unlike conventional welding, where high temperatures can warp or compromise delicate components, laser welding utilizes a concentrated laser beam to melt the material at a precise point, enabling precise control over the welding area. The ability to focus the laser beam down to a fine point ensures that heat is only applied where necessary, leaving the surrounding material unaffected. Moreover, laser welding can be easily automated, offering both high repeatability and scalability in production environments.
This guide will explore the principles of laser welding for thin materials, discuss its key advantages and challenges, and provide insights on selecting the right equipment and techniques for optimal results. Whether you’re new to the process or looking to refine your existing practices, this article will serve as a comprehensive resource for mastering laser welding of thin materials.

Understanding Thin Material Welding

What Are Thin Materials?

In the context of welding, thin materials refer to metal sheets, foils, or strips with a thickness typically ranging from 0.1 mm to 2 mm. These materials are often used in industries such as electronics, automotive, aerospace, and medical devices, where precision and lightweight construction are crucial. Common examples of thin materials include stainless steel, aluminum, titanium, and copper alloys, each of which presents unique characteristics when it comes to welding.
Thin materials are crucial in various applications because they provide strength and durability while minimizing weight, which is essential for high-performance products. The challenge with these materials, however, lies in the fact that their thinness makes them more susceptible to heat distortion, warping, and burn-through during the welding process.

Challenges in Welding Thin Materials

Welding thin materials presents a host of unique challenges that require careful planning and precise techniques. Some of the key challenges include:

Heat Sensitivity and Distortion: Thin materials have a low thermal mass, meaning they heat up and cool down quickly. This makes them particularly prone to overheating, which can cause warping, distortion, or even melting through the material. Effective heat control is essential to ensure that only the weld area is sufficiently heated without compromising the integrity of the surrounding material.
Risk of Burn-Through: The thinness of the material means that excessive heat input can easily cause burn-through, where the material melts completely, creating a hole in the workpiece. This is a common issue in welding thin metals, especially with higher-powered lasers or traditional arc welding methods.
Reduced Weld Pool Control: Thin materials don’t hold the molten pool of metal as effectively as thicker materials. This makes it harder to control the weld pool during the process, increasing the risk of uneven welds, inadequate penetration, or weak bonding. Weld penetration and fusion need to be precisely controlled to ensure strength and durability.
Minimizing Heat-Affected Zone (HAZ): The heat-affected zone (HAZ) refers to the portion of the material that is affected by the heat from the welding process, where the properties of the metal change. For thin materials, the HAZ can extend across a larger portion of the material, potentially weakening the entire piece. Effective heat management is crucial to limit the size of the HAZ, which is one of the main objectives when welding thin materials.
Material Melting Point Variability: Different metals have varying melting points, and thin materials can reach their melting point more easily. When welding metals like aluminum or stainless steel, the range between the solid and liquid states is relatively narrow, making it more difficult to achieve optimal weld quality without causing defects.
Weld Speed and Precision: Thin materials require high-speed welding with precise control over the welding parameters. Slow welding speeds can lead to excessive heat buildup, while fast speeds can result in poor fusion or inadequate penetration. The welding process must be fine-tuned to ensure that the speed of the weld matches the material’s thermal characteristics.

Welding thin materials requires a precise understanding of how heat affects the material. These materials, typically ranging from 0.1 mm to 2 mm thick, are highly sensitive to temperature variations. The main challenges include preventing heat distortion, avoiding burn-through, managing the heat-affected zone, and maintaining control over the molten weld pool. These issues require specialized techniques, such as laser welding, which offers better heat control and precision compared to traditional methods. The key to successful welding of thin materials lies in minimizing heat input while ensuring proper fusion and structural integrity.

Why Laser Welding for Thin Materials

Laser welding has become a go-to method for joining thin materials due to its precision, speed, and versatility. Traditional welding methods like MIG or TIG may struggle with the unique challenges presented by thin metals, such as heat distortion, burn-through, and lack of control over the weld pool. Laser welding, on the other hand, addresses these challenges with superior accuracy, low thermal impact, and the ability to handle a range of materials and configurations.

Precision and Control

One of the primary reasons laser welding is favored for thin materials is its high level of precision. The focused laser beam can be adjusted to a very small spot size, allowing for tight control over the welding process. This means that laser welding can be applied to very fine, intricate joints where accuracy is paramount. Thin materials, which are particularly sensitive to heat, require tight control over the weld area to prevent distortion, warping, or burn-through.
Laser welding allows the operator to focus the energy directly onto the area being welded, reducing the risk of heat spreading to surrounding material. This level of precision ensures that the heat-affected zone (HAZ) remains small and localized, preventing undesired changes in the surrounding metal properties. As a result, laser welding can produce clean, high-quality welds with minimal post-processing.

Low Heat Input

Thin materials are particularly susceptible to heat damage, and excessive heat can lead to burn-through or warping. Unlike traditional welding techniques, laser welding uses a concentrated beam of light that delivers energy directly to the welding area, minimizing the heat input to the rest of the material. This makes it easier to maintain the integrity of the material, as the surrounding areas are not exposed to excessive heat that could lead to changes in metallurgical properties or dimensional distortions.
Low heat input also reduces the potential for defects such as porosity, cracking, or excessive spatter, which are often associated with other welding methods. Laser welding’s precision allows for a controlled, rapid heating and cooling cycle, which is critical in avoiding the common issues that arise when welding thin materials.

High Speed and Productivity

Laser welding is renowned for its high-speed capabilities, which significantly enhance productivity. In many industrial applications, especially those involving thin materials, speed is crucial to reduce operational costs and improve throughput. The focused laser beam can produce continuous, high-speed welds, allowing for the welding of thin materials at much faster rates than conventional methods.
Additionally, the precision of laser welding means there is less time spent correcting defects or imperfections, which further optimizes overall welding efficiency. High-speed laser welding is ideal for applications where time is of the essence, such as in mass production or automated manufacturing environments.

Automation-Friendly

Laser welding is highly compatible with automated systems, which makes it ideal for production environments that require consistency and repeatability. Automation can be easily integrated into the laser welding process, ensuring that high-quality welds are produced with minimal manual intervention. Robots or CNC machines can control the laser, optimizing factors such as speed, power, and focal point with precision. This is particularly beneficial when welding thin materials, where even small deviations in parameters can lead to defects.
Automated laser welding systems also reduce the chance of human error, improving the reliability and quality of the welds. Additionally, automated setups can run 24/7, further increasing production efficiency while reducing labor costs and the need for highly skilled operators.

Capability for Dissimilar Materials

Laser welding is highly versatile and can be used to join a variety of materials, including dissimilar metals. This capability is particularly valuable in industries like electronics, automotive, and aerospace, where different types of materials must be joined together. For thin materials, the ability to weld dissimilar metals with different thermal properties, such as aluminum to steel or copper to titanium, is a significant advantage.
Traditional welding methods can struggle with dissimilar materials, especially when the metals have significantly different melting points or thermal conductivities. Laser welding, however, can be fine-tuned to accommodate these differences, ensuring strong, reliable welds between the different materials. This is achieved through precise control over heat distribution and the ability to adjust welding parameters for each material being joined.

Clean and Aesthetic Welds

Laser welding produces welds that are not only structurally sound but also aesthetically pleasing. Thin materials, especially in industries like electronics or medical devices, often require a clean, smooth appearance. Laser welding produces minimal spatter, reduces the need for extensive post-weld cleaning, and creates welds with smooth, uniform surfaces.
The high energy concentration of the laser allows for very fine weld beads, which can result in visually appealing, high-quality joints. In applications where the weld’s appearance is as important as its strength, laser welding is a preferred choice due to its ability to produce welds that meet strict aesthetic standards.
Additionally, laser welding minimizes oxidation and contamination during the process, further enhancing the cleanliness of the weld area. This is especially important when welding materials that are sensitive to oxidation, such as stainless steel or titanium.

Laser welding is the ideal solution for welding thin materials, offering numerous advantages over traditional methods. Its precision and control reduce the risk of heat distortion and burn-through, while its low heat input ensures minimal damage to the material. The high speed and productivity of laser welding make it a cost-effective solution for high-volume manufacturing, and its automation capabilities further enhance efficiency and consistency. Laser welding’s ability to join dissimilar materials and produce clean, aesthetically pleasing welds makes it a versatile choice for a wide range of industries. Ultimately, laser welding provides the ideal balance of speed, precision, and quality, making it the go-to method for working with thin materials.

Key Process Parameters

Laser welding thin materials requires fine-tuning of several key process parameters to ensure high-quality welds without compromising the integrity of the material. Each of these parameters directly affects the heat input, weld penetration, bead formation, and overall quality of the weld. Adjusting these parameters optimally helps address the unique challenges associated with thin materials, such as preventing burn-through, minimizing distortion, and maintaining structural integrity.

Laser Power

Laser power is one of the most important parameters in any laser welding process, as it directly influences the amount of heat delivered to the material. The power setting determines how much energy is concentrated in the welding area, affecting the depth of penetration, the width of the weld bead, and the overall speed of the process.
For thin materials, laser power needs to be carefully balanced. Too much power can lead to burn-through, where the material melts all the way through, while too little power may result in incomplete fusion and weak joints. The power required can vary depending on the material being welded (e.g., aluminum vs. steel), the thickness of the material, and the desired weld characteristics.
Typical range: For welding thin materials, laser power generally ranges from 100 W to 3 kW, but it must be adjusted based on the specific thickness and material.

Welding Speed

Welding speed refers to the rate at which the laser moves along the joint to be welded. It is directly linked to the heat input and penetration characteristics of the weld. If the welding speed is too slow, it may result in excessive heat input, leading to distortion or burn-through. On the other hand, if the welding speed is too fast, the heat may not be sufficient for proper fusion, resulting in weak or incomplete welds.
For thin materials, welding speed needs to be optimized to prevent excessive heat buildup while ensuring that the material is adequately melted and fused. It also affects the final appearance of the weld bead. High-speed laser welding can improve throughput and productivity without sacrificing the quality of the weld.
Typical range: Welding speeds for thin materials are generally between 5 mm/s to 20 mm/s, depending on the material and laser power.

Focus Spot Size

The focus spot size refers to the diameter of the laser beam at the point where it hits the material. A smaller focus spot size allows for higher power density and more localized heating, which is critical when welding thin materials, as it enables better control of the weld pool and minimizes heat input to surrounding areas.
In the case of thin materials, maintaining a small focus spot is crucial to achieve precise, high-quality welds with minimal distortion. However, if the spot size is too small, it may result in an overly concentrated heat input, which can cause burn-through or unnecessary material melting.
Typical range: For thin materials, the focus spot size usually ranges from 0.2 mm to 1 mm, depending on the laser and the type of material being welded.

Focus Position

The focus position determines where the laser beam is focused on the surface of the material being welded. The focus can either be on the surface of the material or slightly below it. For thin materials, adjusting the focus position is essential for controlling the depth of the weld and achieving the desired fusion profile.
If the focus is too far above the material, the energy density will be reduced, leading to poor penetration. If the focus is too far below the surface, it may cause excessive heat concentration, leading to burn-through or warping. Adjusting the focus position is particularly important for materials like aluminum, which are highly reflective and require precise control of the laser beam.
Typical range: The focus position is often set slightly below the surface (0 to 1 mm), but this can vary depending on the material and desired weld characteristics.

Pulse Duration and Frequency

For pulsed laser welding, pulse duration and frequency are critical parameters that influence the weld’s characteristics, such as the heat distribution, penetration depth, and the appearance of the weld.

Pulse Duration: The duration of each laser pulse is typically very short and is measured in milliseconds or microseconds. The pulse duration controls how long the laser beam stays focused on a specific point, which affects the overall heat input and fusion. Shorter pulses are typically used for thin materials, as they help control the heat input, reducing the risk of burn-through or overheating.
Pulse Frequency: The frequency refers to how often the laser pulse is emitted in a given period. Higher pulse frequency results in a more continuous weld seam, while lower frequencies can result in larger gaps between individual welds. For thin materials, pulse frequency needs to be carefully adjusted to maintain consistent heat and penetration while minimizing distortion.

Typical range: Pulse durations typically range from 0.1 ms to 20 ms, while frequencies range from 1 Hz to 100 Hz, depending on material thickness and desired weld characteristics.

Shielding Gas

Shielding gas plays a crucial role in protecting the weld pool from contamination during the welding process. When welding thin materials, the heat generated can cause oxidation, especially with reactive metals like aluminum or titanium. Shielding gases, such as argon, helium, or a mixture of both, help to prevent oxidation and improve weld quality by creating a protective atmosphere around the weld zone.
For thin materials, it is essential to use the right gas flow rate to prevent excessive turbulence, which could lead to porosity or a poor-quality weld. The shielding gas also helps cool the area around the weld, maintaining the integrity of the material.
Typical gases: Argon and helium are commonly used, with flow rates generally between 5 to 15 L/min.

Beam Oscillation (Wobble Welding)

Beam oscillation, or wobble welding, is a technique where the laser beam is made to oscillate or move in a controlled pattern across the weld joint. This method spreads the heat more evenly across the material, which can help avoid concentrated melting and reduce the risk of burn-through, especially when working with thin materials.
By oscillating the beam, the heat input is distributed over a larger area, allowing for a more uniform weld. This technique is particularly useful when welding thin materials that are prone to distortion, as it reduces localized heating and helps maintain consistent weld quality.

Benefits of Beam Oscillation:

Reduced risk of burn-through.
More consistent penetration.
Less heat distortion and warping.
Better weld appearance.

Typical range: Oscillation amplitude and frequency are typically set to values that match the thickness and material type being welded.

The key process parameters for laser welding thin materials—laser power, welding speed, focus spot size, focus position, pulse duration and frequency, shielding gas, and beam oscillation—play a vital role in ensuring optimal weld quality. Each parameter must be carefully controlled to avoid issues such as burn-through, distortion, and poor fusion, all of which are more prevalent when working with thin materials. By fine-tuning these parameters, operators can achieve precise, high-quality welds that meet the specific requirements of thin-material applications. Understanding and adjusting these parameters in real-time enables manufacturers to optimize productivity, reduce defects, and ensure reliable weld performance, making laser welding the ideal choice for joining thin materials.

Laser Welding Techniques for Thin Materials

Laser welding is a highly versatile method that can be adapted for various applications, especially when working with thin materials. The techniques used in laser welding thin materials must be precise to avoid issues such as burn-through, distortion, or weak welds. Each technique offers unique benefits and is suited to specific welding requirements. Below, we explore four key laser welding techniques commonly used for thin materials: Conduction Welding, Keyhole Welding, Seam Welding, and Spot Welding. Understanding the strengths and applications of each technique is essential to achieve high-quality welds in thin materials.

Conduction Welding

Conduction welding is a relatively shallow penetration process that relies on the heat conducted from the laser beam to the material. In this technique, the laser beam heats the material’s surface, which then spreads the heat into the surrounding area, resulting in a shallow, wider weld.

How It Works: The laser energy is absorbed by the surface of the material, causing the material to melt and form a molten pool. The laser beam does not penetrate deeply into the material but instead creates a relatively thin weld bead on the surface.
Benefits for Thin Materials:

Minimal Heat Input: Conduction welding is particularly effective for thin materials, as it reduces the risk of burn-through and warping. The shallow penetration means less heat is applied to the surrounding material, which prevents distortion.
Control and Precision: This technique offers precise control over the weld bead size, making it ideal for applications where aesthetics and the size of the weld bead matter, such as in electronics or automotive components.
Lower Risk of Material Damage: Since the laser is not deeply penetrating, it minimizes the chances of heat-related defects, ensuring the material retains its structural integrity.

Typical Applications: Conduction welding is used in applications where the material is thin (typically less than 1 mm) and the primary goal is to achieve a precise, controlled weld without excessive heat input, such as in sheet metal joining and certain types of medical device manufacturing.

Keyhole Welding

Keyhole welding, also known as deep penetration welding, involves the laser beam creating a small “keyhole” or vapor cavity in the material, allowing for deeper penetration and a stronger weld. In this process, the laser beam heats the material to a point where it evaporates, creating a small cavity in the weld pool. The high energy density of the laser beam maintains the cavity, and the molten material solidifies behind it, creating a deep and narrow weld.

How It Works: The laser beam heats the surface to the point of vaporization, forming a keyhole or plasma channel. As the beam moves along the joint, the keyhole is sustained, allowing the laser to penetrate deeply into the material. The molten material solidifies behind the keyhole, forming a narrow, strong weld.
Benefits for Thin Materials:

Deep Penetration in Thin Sections: Even though the material is thin, keyhole welding can achieve significant penetration depth without excessive heat, which is ideal for materials like stainless steel, titanium, and high-strength alloys.
Stronger Welds: Because of the deeper penetration, the weld is generally stronger and more reliable than in conduction welding.
Minimal Heat-Affected Zone (HAZ): Since the laser is concentrated in a small keyhole area, the heat input to the surrounding material is minimal, reducing the size of the heat-affected zone.

Typical Applications: Keyhole welding is ideal for applications where deep welds are necessary, such as in aerospace and automotive industries, where strong, thin, high-penetration welds are required for structural parts.

Seam Welding

Seam welding is a continuous welding process that is used to join long, continuous joints along the edge of materials, often in sheet or strip form. In laser seam welding, the laser beam is typically moved continuously along the weld path, creating a strong, continuous bond between the materials. The technique is often used to create tight, strong seams in components that require a hermetic seal or pressure-tight joint.

How It Works: The laser is directed along the edge of the joint, and as the beam moves, it continuously melts the material at the edges, fusing them. For thin materials, the beam must be finely controlled to ensure a uniform, consistent seam without over-melting the material.
Benefits for Thin Materials:

Smooth and Continuous Joints: Seam welding creates smooth, continuous welds without gaps, which is ideal for thin materials that need to be joined without creating stress points.
High-Speed Welding: Since the laser beam is continuously applied, seam welding can be faster than spot welding, making it ideal for high-throughput manufacturing environments.
Precision: The process is very precise, providing consistent welds without excessive heat input, reducing the risk of burn-through or distortion in thin materials.

Typical Applications: Seam welding is commonly used in industries such as automotive (for body panels), electronics (for battery enclosures), and medical devices (for hermetically sealed containers). It’s particularly effective for joining thin metal sheets and strips in continuous production lines.

Spot Welding

Spot welding is one of the simplest and most widely used laser welding techniques, where the laser beam is focused on a specific spot to join materials. This method is most commonly used for welding thin materials, as it creates a small, localized weld that doesn’t require extensive heat input.

How It Works: The laser beam is focused on a small area of the material, typically along a joint. The concentrated energy melts the material at the weld point, creating a “spot” that fuses the materials. Spot welding can be performed in a single pulse or multiple pulses, depending on the thickness and type of material being welded.
Benefits for Thin Materials:

Quick and Efficient: Spot welding is fast and efficient, making it ideal for high-volume production environments where thin materials need to be joined quickly and precisely.
Minimal Distortion: Because of the localized heating, spot welding generates minimal heat input, making it less likely to cause distortion or warping in thin materials.
Reduced Heat-Affected Zone: The small weld area results in a smaller heat-affected zone, which is essential when working with thin materials that could be compromised by excessive heat.

Typical Applications: Spot welding is commonly used in the automotive, electronics, and sheet metal industries, where thin components such as car body panels, circuit boards, and appliance parts need to be welded in a quick, precise manner.

Each laser welding technique—conduction welding, keyhole welding, seam welding, and spot welding—offers specific advantages when working with thin materials. Conduction welding is ideal for shallow, controlled welds without excessive heat input. Keyhole welding allows for deeper penetration and stronger bonds in thin sections, while seam welding is perfect for continuous joints in sheet metal applications. Spot welding provides a fast, efficient solution for localized welds in high-volume manufacturing settings. Understanding the strengths of each technique helps manufacturers select the right approach based on material type, joint design, and production needs, ensuring high-quality, reliable welds for thin materials across various industries.

Joint Design for Thin Material Welding

The design of the joint is crucial when welding thin materials, as it directly impacts the quality, strength, and efficiency of the weld. Thin materials are more sensitive to heat input and can be easily deformed, so the joint design must be optimized to minimize the risk of burn-through, distortion, or weak welds. Different types of joints—such as butt joints, lap joints, fillet joints, and spot welds—are suited to various applications and material configurations. Understanding the advantages, challenges, and best practices for each joint design is essential for achieving high-quality, durable welds in thin materials.

Butt Joints

Butt joints are one of the most common joint types used in welding, where the edges of two pieces of material are aligned and welded together without any overlap. The materials are placed end-to-end, with the weld running along the interface between them.

How It Works: In butt joints, the laser beam is focused on the edge of the material to create a precise weld along the entire joint. For thin materials, careful control of the laser parameters is required to prevent burn-through while ensuring deep enough penetration to create a solid bond.
Benefits for Thin Materials:

Strong, Flush Welds: Butt joints are ideal for creating strong, flush welds that do not add bulk to the material, which is essential for maintaining the overall appearance and dimensional accuracy of thin parts.
Less Distortion: When properly executed, butt joints can minimize distortion, especially when laser welding thin materials, as they provide a clean, even surface for the weld.
Higher Strength: The butt joint weld generally produces stronger, more durable bonds, as the material is welded directly along the edges, without the need for overlap or additional thickness.

Considerations:

Edge Preparation: Thin materials often require careful edge preparation (such as a slight bevel or square edge) to ensure that the laser beam can penetrate properly and create a uniform weld.
Heat Input: For thin materials, the risk of burn-through is higher with butt joints due to the concentration of heat on the joint edges. Proper control of welding speed, power, and focus position is essential.

Typical Applications: Butt joints are widely used in industries like automotive, aerospace, and electronics, where strong, flush welds are required, such as in the joining of thin metal sheets for structural components or electronic enclosures.

Lap Joints

Lap joints involve overlapping two pieces of material, with the laser welding the edge of the top piece to the underlying piece. This joint design is commonly used when the materials to be welded are of unequal thicknesses or when a strong, simple joint is needed.

How It Works: The laser beam is focused on the top surface of the upper material, melting the edge and bonding it to the underlying material. Lap joints typically result in a more robust weld because the laser beam has more material to melt into, reducing the likelihood of burn-through, especially with thin materials.
Benefits for Thin Materials:

Reduced Burn-through Risk: Since the top layer is being welded to the underlying material, the laser beam typically penetrates less deeply, reducing the risk of burn-through—a critical factor when working with thin materials.
Easier to Align: Lap joints are easier to align compared to butt joints, especially with thin materials that are prone to distortion. The overlapping design naturally accommodates misalignment.
Higher Joint Strength: Lap joints create a larger welding area, which can result in stronger joints than butt joints in many cases, making them ideal for thinner materials that require additional strength.

Considerations:

Heat Distribution: Since the laser focuses on the upper layer, heat distribution is more concentrated on the top material, potentially leading to uneven cooling and distortion if not properly controlled.
Material Thickness: The difference in material thickness between the layers must be considered carefully. Thin materials on top of thicker materials can be tricky, as the thinner material is more susceptible to excessive heat.

Typical Applications: Lap joints are commonly used in automotive and appliance manufacturing, where thin sheets are often welded to thicker components, such as in body panels, brackets, or casing components.

Fillet Joints

Fillet joints are used when two pieces of material are joined at an angle, forming a triangular weld at the corner of the joint. The laser weld is applied at the intersection, typically where the pieces meet at a right angle or some other angle, creating a “fillet” shape.

How It Works: The laser beam is focused along the corner where the two pieces meet, creating a weld bead that fuses both pieces. Fillet joints are typically used in structural applications where a strong bond is required at the corner of two pieces.
Benefits for Thin Materials:

Versatility: Fillet joints are incredibly versatile, allowing for the joining of materials at a variety of angles, which is ideal for applications where thin materials need to be joined in complex configurations.
Increased Strength: Fillet joints provide high strength at the joint, especially in applications where the joint is subject to shear forces.
Less Edge Preparation: Fillet joints generally require less precise edge preparation compared to butt joints, making them faster and easier to execute for thin materials.

Considerations:

Stress Concentration: Fillet joints can sometimes create areas of stress concentration, especially if the weld is too small or if the joint design is not optimized for load distribution.
Weld Appearance: The weld bead in fillet joints can sometimes be less aesthetically pleasing, particularly in thin materials, where a smooth, uniform appearance may be desired.

Typical Applications: Fillet joints are commonly used in structural welding, such as in frame assemblies or when joining thin plates in machinery, automotive body structures, and light frames.

Spot Welds

Spot welding is a localized form of welding where the laser beam focuses on a specific point, creating a small, concentrated weld at the interface of two materials. This technique is used primarily in high-volume production, where quick, efficient welding is required.

How It Works: The laser is focused on a small area where the two pieces of material overlap, generating heat that causes the material to melt and fuse at the spot. Multiple spot welds can be applied in a row to form a continuous joint.
Benefits for Thin Materials:

Fast and Efficient: Spot welding is one of the fastest and most efficient ways to weld thin materials, especially in mass production settings where speed is essential.
Minimal Heat Input: The localized nature of the weld means minimal heat is introduced to the material, reducing the risk of distortion or burn-through, which is crucial for thin materials.
No Need for Complex Joint Designs: Spot welds do not require complex joint preparation, which makes them ideal for quick, high-volume manufacturing of thin materials.

Considerations:

Limited Strength: Spot welds are generally not as strong as continuous welds, so their use may be limited to low-stress applications or where the strength requirements are less critical.
Potential for Distortion: While spot welding is low heat input, repeated spot welding or improper heat settings can still lead to slight warping in thin materials.

Typical Applications: Spot welding is widely used in the automotive and electronics industries for joining thin metal sheets or components, such as in car body panels, battery assemblies, and circuit boards.

The joint design in laser welding thin materials plays a crucial role in determining the strength, appearance, and overall quality of the weld. Butt joints offer strong, flush welds with minimal distortion but require precise edge preparation. Lap joints provide a good balance of strength and ease of alignment, making them ideal for thin materials with reduced risk of burn-through. Fillet joints are versatile and suitable for structural welding, while spot welds are fast and efficient, making them ideal for high-volume applications. Selecting the appropriate joint design based on the material type, thickness, and application requirements ensures that thin materials are joined effectively and with minimal defects, leading to reliable and durable final products.

Material-Specific Considerations in Laser Welding Thin Materials

Laser welding provides numerous advantages when working with thin materials, but the specific properties of each material play a significant role in determining the best parameters and techniques for a successful weld. Each material responds differently to heat, laser power, and other process variables, and understanding these material-specific behaviors is essential for optimizing weld quality.

Stainless Steel

Stainless steel is one of the most widely used materials for laser welding due to its excellent combination of strength, corrosion resistance, and versatility. It is commonly used in industries such as automotive, food processing, and medical device manufacturing. Precautions when laser welding stainless steel:

Thermal Conductivity: Stainless steel has relatively low thermal conductivity, which helps in focusing the laser energy on the weld area, making it easier to achieve good penetration without excessive heat loss.
Melting Point: The high melting point of stainless steel (around 1,500℃) means that higher laser power may be required, especially for thicker sections. However, care must be taken not to overheat the material, as this can lead to excessive grain growth or distortion.
Oxidation: Stainless steel is prone to oxidation, especially when welding in an oxygen-rich environment. To avoid oxidation and achieve clean welds, it’s essential to use proper shielding gas (such as argon or helium) and control the welding atmosphere.
Heat-Affected Zone (HAZ): Due to its alloying elements (like chromium), stainless steel may experience a larger heat-affected zone compared to some other metals. Careful control of the heat input and welding speed can help minimize HAZ and prevent discoloration.

Aluminum

Aluminum is a lightweight, corrosion-resistant material often used in aerospace, automotive, and electronics. However, welding aluminum presents specific challenges due to its low melting point and high thermal conductivity. Precautions when laser welding aluminum:

Thermal Conductivity: Aluminum has high thermal conductivity, meaning that it quickly dissipates heat from the welding area. This requires higher laser power to maintain the weld pool and prevent premature solidification.
Low Melting Point: Aluminum melts at a relatively low temperature (~660℃), which makes it more susceptible to burning or vaporizing if not properly controlled. This is particularly challenging in thin materials, where burn-through can occur quickly.
Oxide Layer: The oxide layer on aluminum surfaces is much harder and has a higher melting point than the base material. This layer must be broken down before welding, and this requires high power density or pre-welding cleaning to ensure the base material can melt properly.
Porosity: Aluminum is prone to porosity due to its high solubility for hydrogen. Proper shielding gas (such as pure argon) and welding parameters are essential to prevent gas entrapment and ensure a clean, strong weld.

Titanium

Titanium and its alloys are prized for their high strength-to-weight ratio and corrosion resistance, especially in demanding environments like aerospace and medical implants. However, titanium presents unique challenges for laser welding due to its reactive nature. Precautions when laser welding titanium:

Reactivity and Oxidation: Titanium is highly reactive at elevated temperatures, meaning that its surface can easily oxidize during welding. To avoid oxide formation, a high-purity inert gas such as argon is typically used as a shielding gas.
Thermal Conductivity: Titanium has lower thermal conductivity than aluminum but is still relatively high compared to stainless steel. This requires precise control of the laser power to avoid distortion or uneven welds in thin titanium sections.
Heat Affected Zone (HAZ): Titanium is sensitive to overheating, and excessive heat input can lead to brittle structures or loss of material properties. To prevent this, welding parameters like laser power, welding speed, and focus position must be carefully optimized.
Welding Atmosphere: To prevent contamination and oxidation during welding, it’s crucial to create an inert atmosphere around the weld area. This may involve using a controlled chamber or back-purging with inert gas.

Copper and Brass

Copper and brass are both highly conductive metals, commonly used in electrical and heat-exchange applications. While copper is excellent for thermal and electrical conductivity, brass (an alloy of copper and zinc) is often preferred for its mechanical properties. Precautions when laser welding copper and brass:

Thermal Conductivity: Copper has extremely high thermal conductivity, meaning it dissipates heat rapidly. This requires more laser power to achieve sufficient penetration. For thin copper sections, precise power control is essential to avoid under-welding or burn-through.
Reflectivity: Copper also has high reflectivity, which can reduce the efficiency of the laser welding process. This is especially problematic for thin copper materials, as it can make it more difficult to focus and direct the laser beam effectively.
Oxidation and Contamination: While copper doesn’t oxidize as easily as aluminum, it still reacts with oxygen at high temperatures, forming a rough oxide layer. Brass, being an alloy, can also have issues with zinc vaporization, which can compromise the weld.
Laser Power Control: Since both copper and brass are prone to rapid heat dissipation, they require a high-power density, precise control of the laser beam, and effective shielding gas to prevent oxidation or porosity.

Carbon and Galvanized Steel

Carbon steel is a versatile material commonly used in manufacturing, while galvanized steel (carbon steel coated with zinc) is often used in outdoor and automotive applications for its corrosion resistance. Precautions when laser welding carbon steel and galvanized steel:

Carbon Steel: Carbon steel has moderate thermal conductivity and a relatively high melting point, which makes it well-suited for laser welding. However, it is prone to heat-affected zone (HAZ) issues, especially with thicker materials. Thin carbon steel, on the other hand, can be welded with ease, provided proper heat control is maintained.
Galvanized Steel: Welding galvanized steel is more challenging due to the zinc coating, which can vaporize and create harmful fumes when heated. The presence of zinc can also lead to poor weld quality and porosity if not properly controlled. To mitigate this, it is recommended to clean the galvanized surface before welding and use a high-power laser with proper shielding.
Heat Control: Both materials require good heat control during welding to avoid distortion and minimize the risk of creating a brittle weld. The use of laser oscillation (wobble welding) can help distribute heat more evenly, reducing localized stresses.

Laser welding thin materials requires a thorough understanding of how different metals respond to heat, laser power, and welding conditions. Stainless steel and aluminum both require attention to oxidation control and heat management, with aluminum needing additional care for its oxide layer. Titanium requires an inert atmosphere to avoid oxidation, while copper and brass present challenges with reflectivity and thermal conductivity. Carbon and galvanized steel have their considerations, especially with galvanized steel’s zinc coating, which can lead to contamination and porosity. By understanding these material-specific characteristics, manufacturers can optimize their laser welding processes to achieve high-quality, precise welds in thin materials across a range of industries.

Techniques to Prevent Defects in Laser Welding Thin Materials

Laser welding offers significant advantages in terms of precision and speed, but it also presents unique challenges, especially when working with thin materials. One of the biggest hurdles is avoiding common welding defects such as burn-through, warping, cracks, porosity, and spatter. These defects can compromise the structural integrity, appearance, and overall quality of the welded joint. Fortunately, by applying targeted techniques and process controls, these defects can be minimized or eliminated.

Avoiding Burn-Through

Burn-through occurs when the laser’s heat input exceeds the material’s ability to handle the energy, causing the material to melt completely through, resulting in an unacceptable hole or gap in the weld zone. This is especially problematic when working with thin materials, which are more susceptible to heat-induced damage.

Techniques to Avoid Burn-Through:

Control Laser Power and Speed: One of the most critical factors in preventing burn-through is controlling the laser’s power and welding speed. A lower laser power or a faster welding speed helps reduce the amount of heat input, thereby minimizing the risk of burning through the material. The optimal power settings depend on the material thickness, but a high-speed, low-power approach is often recommended for thin materials.
Use a Smaller Spot Size: A smaller focus spot size can help concentrate the laser’s energy into a more controlled area, reducing the chance of heat spreading too much and causing burn-through.
Adjust Focus Position: Positioning the laser focus slightly above the work surface can help distribute the heat more evenly and prevent concentrated heat in one spot, which can lead to burn-through.
Shielding Gas: The use of an appropriate shielding gas, such as argon or helium, can help maintain a stable welding arc, prevent oxidation, and reduce the chance of burn-through. The shielding gas also helps dissipate heat, providing better control over the molten pool.

Minimizing Warping

Warping is the distortion of a workpiece due to uneven heating and cooling during the welding process. Thin materials are especially vulnerable to warping, as the heat affects them more rapidly and unevenly. Warping not only affects the quality of the weld but also the fit and functionality of the welded components.

Techniques to Minimize Warping:

Optimize Heat Input: By carefully controlling the heat input, including laser power, speed, and pulse duration, it is possible to achieve even heat distribution across the material, which minimizes the risk of warping. Avoiding excessive heat allows the material to cool in a more controlled manner.
Use of Pulsed Laser Welding: Pulsed laser welding, as opposed to continuous welding, introduces intermittent energy bursts to the material. This allows for better heat control, reducing the chance of thermal buildup and associated warping. Pulsed welding also results in smaller, more controlled weld pools, which helps in preventing excessive distortion.
Preheat or Postheat the Material: For some materials, particularly those with high thermal conductivity (like aluminum or copper), preheating the workpiece or post-heating it can help reduce the thermal gradient, minimizing the potential for warping.
Workpiece Fixturing: Using proper fixturing techniques, such as clamping or supporting the workpiece during the welding process, ensures that the material remains fixed and aligned, reducing the chance of distortion during and after the weld.

Reducing Spatter

Spatter refers to the small droplets of molten material that are ejected from the weld pool and can land on the surrounding surface. Spatter not only affects the appearance of the weld but also contributes to the need for additional post-weld cleaning, which can be time-consuming and costly.

Techniques to Reduce Spatter:

Use of a High-Quality Laser Beam: A focused, high-quality laser beam that delivers uniform energy to the workpiece helps control the weld pool size and shape, reducing the chances of spatter formation. A stable laser spot ensures smooth, clean welds with minimal spatter.
Proper Shielding Gas Flow: Adequate shielding gas flow helps to protect the molten pool from atmospheric contamination, preventing the formation of spatter. Additionally, ensuring that the gas flows smoothly and consistently will reduce turbulence, which can stir the molten pool and cause spatter.
Optimize Welding Parameters: By adjusting parameters like pulse duration, frequency, welding speed, and laser power, the material can be melted and cooled more evenly. This results in a smoother weld pool with less splatter. High-speed welding with precise laser control helps to avoid the excessive heat that leads to spatter.
Post-Weld Cleaning: In cases where spatter does occur, employing appropriate post-weld cleaning methods, such as laser cleaning or mechanical brushing, can help remove the deposits without damaging the thin material.

In laser welding thin materials, achieving defect-free welds requires meticulous attention to several critical factors. Burn-through can be avoided by controlling laser power and speed, while warping can be minimized by optimizing heat input and using pulsed laser techniques. Cracks and porosity can be prevented with proper shielding, cleaning, and material preparation, while spatter can be reduced by fine-tuning the welding parameters and maintaining a stable laser beam. By carefully managing these techniques and considering material-specific behaviors, manufacturers can achieve high-quality, reliable welds in thin materials, ensuring both structural integrity and aesthetic appeal.

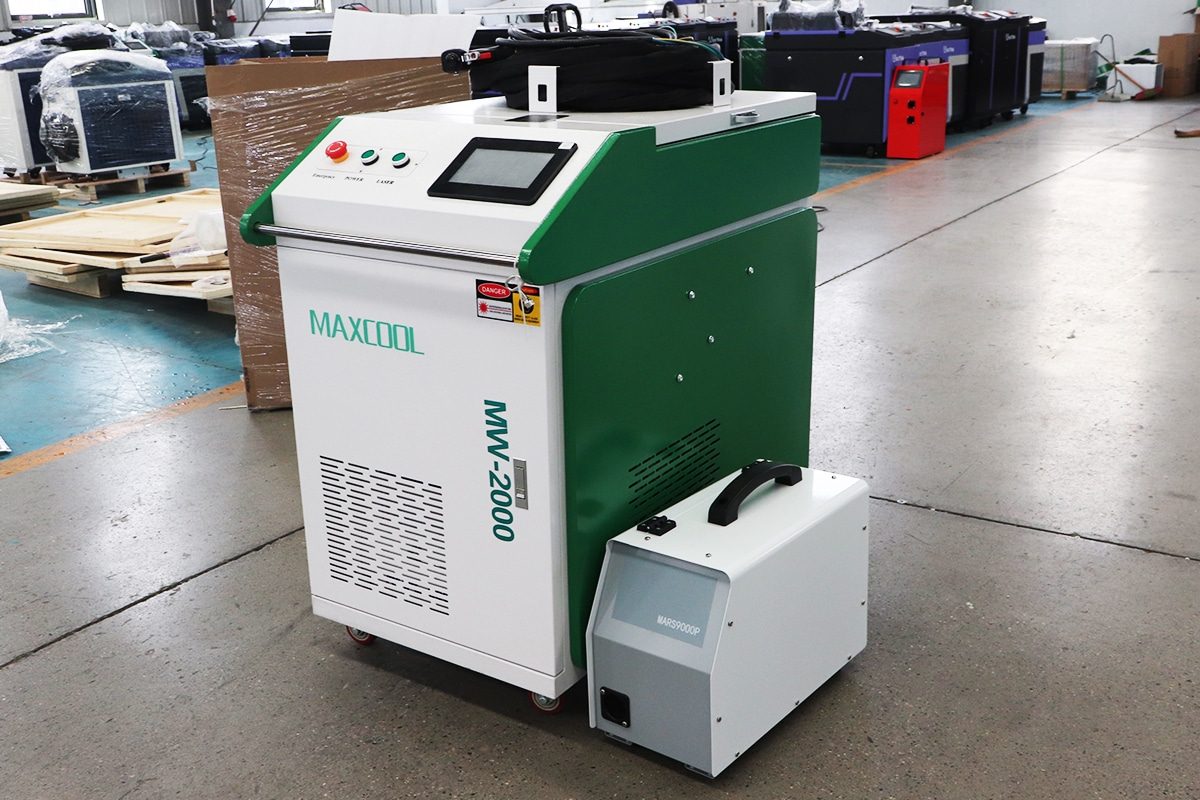

Selecting the Right Laser Welding Machines

Selecting the appropriate laser welding machine is crucial to achieving high-quality welds, particularly when working with thin materials. The right machine can significantly improve welding precision, reduce defects, and enhance productivity. However, choosing the right machine involves understanding the type of laser, machine specifications, and the specific needs of the material and application. The following are the key factors for choosing a suitable laser welding machine:

Laser Power and Welding Speed

The appropriate power settings depend heavily on the material thickness, welding speed, and joint design. Thin materials are sensitive to heat, and using too much power can lead to burn-through or excessive heat-affected zones (HAZ), while too little power may result in weak or incomplete welds. When selecting a laser welding machine, it is essential to:

Match Laser Power to Material Thickness: For thin materials (typically less than 3 mm), laser power typically ranges from 100 to 500 W for optimal performance. Higher power may be necessary for materials with high reflectivity or thicker sections.
Welding Speed: The welding speed is directly influenced by the laser power. For thin materials, higher speeds are often required to prevent thermal damage. The machine should allow for easy adjustment of both power and speed to suit various welding conditions.

Focusing Capabilities and Spot Size

One of the primary advantages of laser welding thin materials is the ability to concentrate high power into a small area. The machine’s ability to focus the laser beam to a small, precise spot size is critical for controlling the weld’s penetration and minimizing defects such as burn-through or spatter.

Focus Spot Size: The smaller the focus spot, the higher the precision. For welding thin materials, a focused beam with a spot size ranging from 0.1 mm to 1 mm is ideal. This small focus ensures tight control over the weld pool, resulting in cleaner, more precise welds.
Focusing Optics: Machines should have high-quality, adjustable focusing optics to maintain sharp focus on the work surface. This is particularly important for welding very thin or delicate materials, where beam divergence or poor focus can lead to weld defects.

Beam Delivery System

The beam delivery system transmits the laser energy from the laser source to the workpiece. This system must be efficient and adaptable to the welding task.

Fiber Optic Delivery: Modern fiber laser systems use fiber optics to deliver the laser beam to the welding head, which is often more flexible and easier to integrate into automated systems than traditional mirror-based systems. Fiber optic delivery systems are particularly advantageous for high-precision welding of thin materials.
Beam Divergence: A lower divergence is important for ensuring that the laser remains focused on a small spot over the entire weld. High divergence can cause a spread of heat, leading to a larger heat-affected zone and potential material distortion.

Cooling System and Heat Management

Thin materials are especially sensitive to heat, and excessive heat input can lead to warping, burn-through, or distortion. For this reason, the laser welding machine must be equipped with an efficient cooling system to regulate both the laser and the workpiece temperature.

Active Cooling Systems: High-power laser systems often come with active cooling mechanisms such as water-cooling systems, which help maintain stable operation and prevent overheating. This is particularly important for applications involving thin, delicate materials that need precise temperature control.
Heat Dissipation: The machine should also be designed to effectively dissipate heat from the laser source and optics, minimizing the thermal load on the material being welded. This is critical for maintaining the integrity of thin-walled components.

Welding Head Features and Adjustability

The welding head is the part of the machine that directs the laser beam to the workpiece. For laser welding thin materials, an adjustable welding head is crucial for ensuring precise beam placement and for accommodating various joint designs.

Focusing Lens and Positioning: The welding head should allow for precise adjustments in terms of the focus position relative to the workpiece. This helps control the depth of penetration and the weld geometry.
Laser Beam Oscillation (Wobble Welding): Some machines offer a feature called beam oscillation or wobble welding, where the laser beam is moved in a controlled pattern across the weld seam. This technique is particularly useful for thin materials, as it can help reduce heat concentration, minimize distortion, and improve weld strength.

Automation and Integration with Robotics

For high-volume production environments, especially when dealing with thin materials, automation is key to improving efficiency, repeatability, and precision. Many modern laser welding machines can be integrated with robotic systems for automated loading, welding, and unloading processes.

Automation Compatibility: The machine should be compatible with robotic arms, linear slides, or turntables, which help position the workpiece precisely for repeatable welds. Automated systems also reduce human error and increase overall productivity.
Vision Systems: Laser welding machines can be equipped with vision systems to automatically track the joint or gap for welding, ensuring accurate seam following in real-time.

User Interface and Control Systems

An intuitive and user-friendly control system is crucial for optimizing welding parameters, especially when working with thin materials. The ability to make quick adjustments and monitor machine performance during the welding process can prevent defects and enhance overall weld quality.

Advanced Software Features: Look for laser welding machines with advanced software that can help operators adjust parameters like power, speed, focus, and pulse duration easily. Real-time monitoring of welding conditions such as temperature, weld pool size, and focus position ensures greater control over the process.
Pre-Set Programs and Customization: Many modern laser welding systems come with pre-set programs for specific materials and thicknesses, reducing setup time and simplifying the welding process. Customizable settings are also necessary to accommodate the unique needs of different thin materials and applications.

Choosing the right laser welding machine for thin materials is a multifaceted decision that depends on various factors such as laser type, power, beam delivery, cooling systems, and automation capabilities. Fiber lasers are the most suitable choice for thin material welding due to their precision, focusability, and power efficiency. It’s also critical to ensure that the machine provides optimal beam control, cooling, and automated options, particularly for high-speed and high-volume applications. By understanding the specific requirements of your material and welding application, you can select a machine that ensures precision, reliability, and high-quality welds in thin materials.

Summary

Laser welding is a highly effective and efficient method for joining thin materials, offering precision, speed, and minimal heat-affected zones. In this guide, we’ve explored the core aspects of laser welding thin materials, from understanding the unique challenges of welding lightweight metals to selecting the best machine for optimal results. Thin materials, such as stainless steel, aluminum, and titanium, require careful control of welding parameters, including laser power, speed, focus spot size, and shielding gas, to prevent defects like burn-through, warping, and porosity.
Laser welding techniques like conduction and keyhole welding provide the necessary versatility for various joint designs, whether it’s butt joints, lap joints, or spot welds. Furthermore, different materials—each with unique properties—demand specific considerations to ensure successful welds. By choosing the right laser source, machine settings, and welding technique, manufacturers can achieve high-quality, strong, and aesthetically pleasing welds with minimal post-weld processing.
Ultimately, understanding the interplay between machine specifications, process parameters, and material characteristics is crucial for achieving reliable, defect-free welds. With the right equipment and techniques, laser welding thin materials can deliver superior results for industries ranging from automotive and aerospace to electronics and medical devices.

Get Laser Welding Solutions

When it comes to precision welding of thin materials, partnering with a reliable laser equipment manufacturer is essential. Maxcool CNC is a professional manufacturer specializing in intelligent laser welding solutions tailored to meet the demands of modern industries. With a strong focus on innovation, quality, and performance, Maxcool CNC offers a wide range of advanced laser welding machines engineered for accuracy, speed, and minimal thermal distortion—ideal for working with thin metals like stainless steel, aluminum, titanium, and copper.
Whether you’re looking to improve weld consistency in high-volume production or need customized automation for delicate components, Maxcool CNC provides solutions that integrate seamlessly into your manufacturing process. Their equipment features cutting-edge technology, including high-precision fiber lasers, wobble welding heads, smart control interfaces, and automation compatibility to ensure repeatable, clean, and strong welds on thin materials.
In addition to providing equipment, Maxcool CNC also offers expert support, application testing, and tailored solutions to help manufacturers optimize their welding processes. From selecting the right machine to setting the correct parameters, their team ensures you get the most out of your investment.
For high-performance, cost-effective laser welding of thin materials, Maxcool CNC delivers solutions that meet the highest standards of precision, reliability, and efficiency.

Product

Get In Touch

Submit The Form
