Plate and Tube Fiber Laser Cutting Machine with Rotary Axis

The Plate and Tube Fiber Laser Cutting Machine with Rotary Axis is a versatile solution designed to cut both flat metal sheets and round or square tubes with high precision and efficiency.
Send Email
Home » Laser Cutting Machine » Plate and Tube Fiber Laser Cutting Machine with Rotary Axis
Whatsapp Envelope Phone-alt

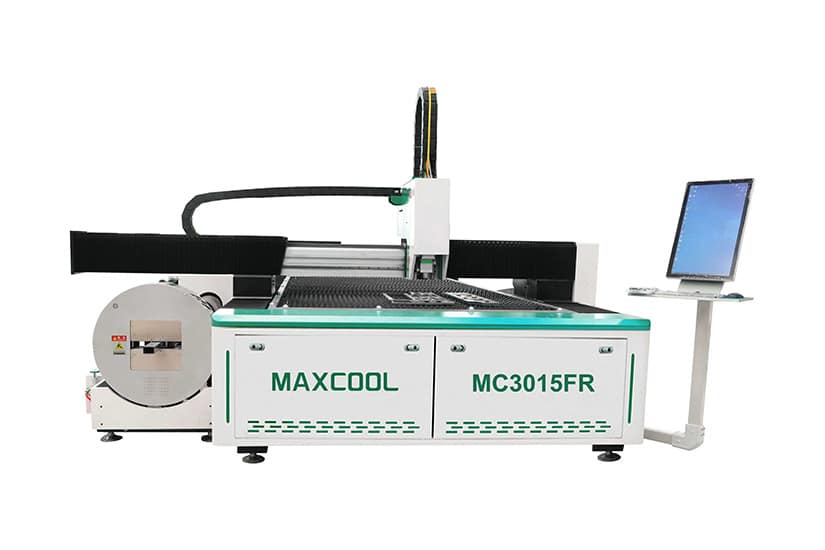

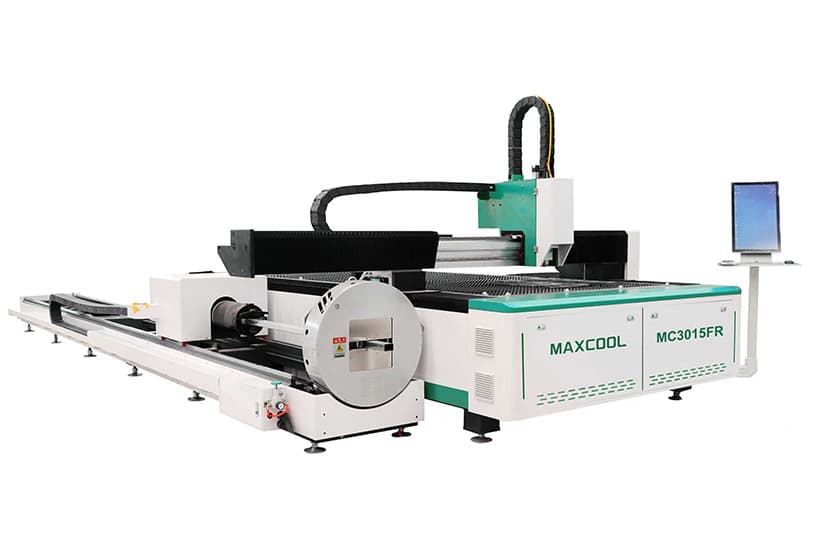

Plate and Tube Fiber Laser Cutting Machine with Rotary Axis
(4 customer reviews)

Price range: $22,400 through $42,600

Send Email
Get a Quote
Online Chat
The Plate and Tube Fiber Laser Cutting Machine with Rotary Axis is a versatile and cost-effective solution designed to cut both flat sheet metal and round or square tubes with a single machine. Equipped with a high-precision rotary axis, this machine supports seamless switching between plate cutting and pipe cutting, making it ideal for manufacturers handling a wide range of metal processing tasks.
This dual-function machine combines a robust flatbed cutting platform with an integrated rotary device that securely clamps and rotates pipes during laser cutting. It accommodates various tube profiles, including round, square, rectangular, and oval pipes. Whether cutting sheet metal parts or fabricating metal tubes for furniture or machinery components, this machine ensures clean cuts, high precision, and excellent repeatability.
Powered by an advanced fiber laser source and a high-performance CNC control system, the MC3015FR fiber laser cutting machine delivers fast cutting speeds, low energy consumption, and minimal maintenance. The addition of the rotary axis expands processing capabilities while saving space and cost compared to purchasing two separate machines.
  • Dual Functionality: This machine integrates flatbed cutting for sheet metal and a rotary axis for pipe cutting. It supports seamless transitions between plate and tube processing, saving space and investment costs while maximizing functionality.
  • High-Precision Rotary Axis: Equipped with a high-performance rotary device, the machine can accurately cut round, square, rectangular, and oval tubes. The rotary axis ensures stable clamping, smooth rotation, and precise cutting along the entire tube length.
  • Wide Material Compatibility: The machine is suitable for cutting a wide range of metals, including carbon steel, stainless steel, aluminum, copper, and brass. It supports the processing of both thin sheets and thick-walled pipes with consistent quality.
  • Fast Switching Between Plate and Tube Cutting: The rotary axis is designed for quick and easy engagement or disengagement, allowing operators to switch between plate and tube cutting with minimal downtime and setup effort.
  • Durable and Rigid Machine Structure: Built with a stress-relieved welded steel bed and high-precision guide rails, the machine offers excellent stability and vibration resistance, ensuring accurate cutting even during high-speed operation.
  • Optional Chuck Types and Tube Lengths: Various chuck configurations and pipe length capacities are available to meet different production needs. This makes the machine adaptable to industries such as furniture, sports equipment, automotive parts, and metal frames.
Model MC-3015FC
Cutting Range 3000*1500mm
Rotary Axis Size 240*6000mm/350*6000mm
Laser Type Fiber Laser
Laser Generator Raycus, Max
Laxer Power 1.5KW/2KW/3KW/6KW/12KW
Transmission System Gantry Double Drive Structure
Servo Motor Leadshine (XY Axis:750W, Z Axis: 400W)
Maximum Moving Speed 80m/min
Maximum Acceleration 1.0G
Positioning Accuracy ±0.01mm
Repeat Positioning Accuracy ±0.03mm
Voltage and Frequency 220V 50Hz/60HZ

Product Configuration

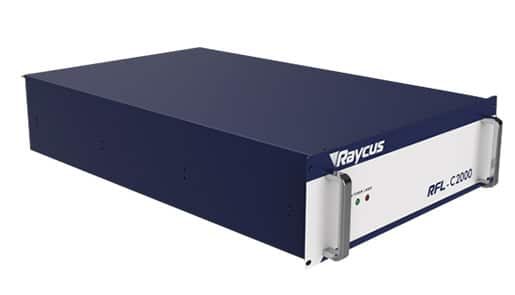

Fiber Laser Generator

Fiber Laser Generator

The laser generator (Raycus, Max) is the core component of a fiber laser cutting machine, providing stable and high-power laser output. Known for efficiency, reliability, and long lifespan, these generators ensure precise cutting with excellent beam quality. They support various power levels, enhancing cutting speed and material versatility.

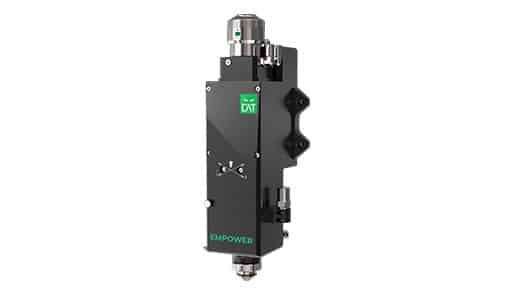

Raytools Laser Cutting Head

Raytools Laser Cutting Head

Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency. It has an automatic focusing function to reduce human intervention. Double optical protection prolongs the life of the core lens. The temperature of the protective lens during cutting can be monitored in real time, effectively reducing poor cutting caused by contamination of the protective lens.

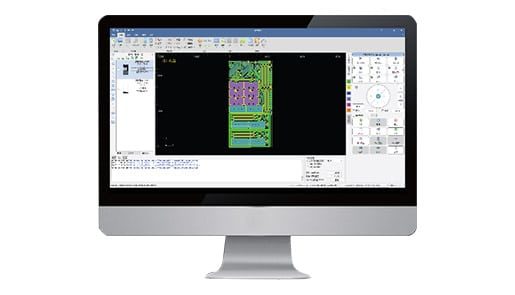

Raytools Control System

Raytools Control System

The RayTools XC3000S system is a CNC software for plane laser cutting in the power range of 30kW and below. Its core supports both EtherCAT bus servo and Pulse+Direction control, offering exceptional motion precision. It fully supports auto edge-finding, breakpoint resume, frame/scanning mode, dry run simulation, part nesting, manual/auto focus lift, and gas control.

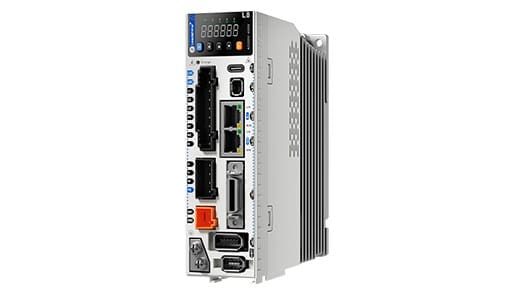

Leadshine Servo Motor

Leadshine Servo Motor

Leadshine servo motors are engineered using advanced electromechanical design and high-quality components, delivering outstanding dynamic response, low torque ripple, minimal temperature rise, high power density, and excellent overload capacity. Ensure precise motion control, fast response, and stable operation.

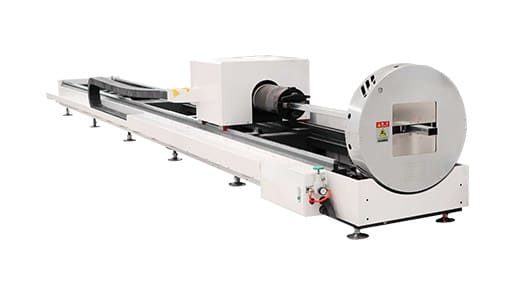

Rotation Axis

Rotation Axis

Designed with double pneumatic chucks, high positioning accuracy, strong clamping force, and smooth rotation, the rotary axis enhances cutting quality and operational efficiency. This rotation, synchronized with the laser head, allows for 360-degree processing of round, square, rectangular, and other shaped tubes, making it possible to create complex cuts such as holes, slots, notches, and angled profiles.

Material Thickness That Can Be Cut With Different Laser Powers

Material Type 1500W 2000W 3000W 6000W 12KW
Carbon Steel (N2/Air) 1mm 1-2mm 1-2mm 1-6mm 1-12mm
Carbon Steel (O2) 2-14mm 2-16mm 2-20mm 3-25mm 8-35mm
Stainless Steel (N2) 1-6mm 1-8mm 1-10mm 1-18mm 1-30mm
Aluminum Alloy (N2) 1-4mm 1-6mm 1-8mm 1-16mm 1-30mm
Brass (N2) 1-3mm 1-5mm 1-6mm 1-12mm 1-16mm
Copper (O2) / 1-3mm 1-4mm 1-8mm 1-10mm

Product Application

The Plate and Tube Fiber Laser Cutting Machine with Rotary Axis is widely used across industries that require high-precision cutting of both flat and tubular metal materials. Its dual-function design makes it ideal for fabricating complex parts in sectors such as metal fabrication, automotive, construction, furniture, agriculture, fitness equipment, and aerospace. Common applications include the production of machine frames, structural components, pipe joints, brackets, support beams, enclosures, and decorative metalwork. The rotary axis enables efficient processing of round, square, and rectangular tubes, making the machine especially valuable for projects that demand detailed tube cutting, such as exhaust systems, railing systems, gym equipment, and steel frameworks. Its versatility and accuracy significantly reduce manual labor and secondary processing, improving both quality and throughput in manufacturing operations. The Plate and Tube Fiber Laser Cutting Machine with Rotary Axis is a versatile solution designed to handle both flat sheet metal and various types of tubes, making it suitable for a wide range of industrial applications. Its ability to cut with high accuracy and speed allows manufacturers to meet tight production deadlines while maintaining consistent quality.

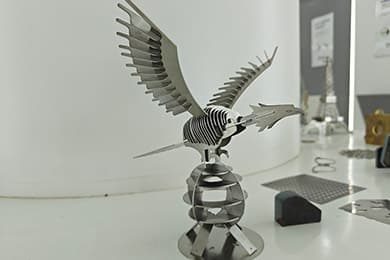

Fiber Laser Cutting Metal-3
Fiber Laser Cutting Metal-4

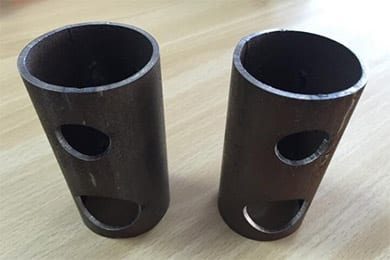

fiebr laser cutting tube-1

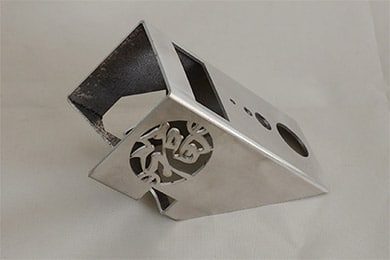

fiebr laser cutting tube-2

Why Choose Us

Maxcool CNC is a leading manufacturer of advanced laser cutting machines, offering state-of-the-art solutions designed for precision, efficiency, and reliability. With extensive industry experience, we focus on providing high-quality machines that meet the diverse needs of various metal cutting applications. Our commitment to innovation, customization, and exceptional customer service makes us the preferred choice for businesses worldwide looking to optimize their production processes. Whether you’re a small business or a large industrial player, Maxcool CNC is your trusted partner in laser cutting technology.

Superior Precision

Our laser cutting machines are engineered to provide unparalleled accuracy, ensuring clean, sharp cuts every time. With advanced optics and motion control, you can trust Maxcool CNC for the highest standard of cutting precision in every application.

Cutting-Edge Technology

Maxcool CNC incorporates the latest advancements in laser cutting technology, delivering efficient and powerful machines. Our systems feature intuitive interfaces and automated settings, enabling fast, error-free operations that boost productivity across industries.

Tailored Solutions

We offer custom solutions designed specifically to meet your business’s unique requirements. Our team works closely with you to understand your needs and deliver machines that optimize your workflow, whether for complex shapes or high-volume production.

Reliable Customer Support

Our commitment doesn’t end with the sale. Maxcool CNC provides exceptional after-sales service, with full technical support, training, and maintenance services. We ensure that your machines continue running at peak performance throughout their lifespan.

Customer Testimonials

4 reviews for Plate and Tube Fiber Laser Cutting Machine with Rotary Axis

  1. Lucas –

    Excellent performance for the price. Cuts through metal and plastic with ease, and the setup was straightforward.

  2. Harper –

    This laser cutter is a game changer for our team. It’s fast, precise, and easy to maintain.

  3. Amelia –

    Fantastic machine! The results are always perfect, and the maintenance is simple, making it a great addition to our workshop.

  4. Aiden –

    Highly efficient laser cutting system. It’s great for our production line, offering fast and clean cuts on various materials.
