Dual-Table Fiber Laser Cutting Machine with Exchange Platform

The Dual-Table Fiber Laser Cutting Machine with Exchange Platform features two interchangeable worktables that enable continuous cutting operations, significantly improving efficiency and reducing downtime in metal fabrication.
Send Email
Home » Laser Cutting Machine » Dual-Table Fiber Laser Cutting Machine with Exchange Platform
Whatsapp Envelope Phone-alt
Dual-Table Fiber Laser Cutting Machine with Exchange Platform
(4 customer reviews)

Price range: $13,900 through $34,000

Send Email
Get a Quote
Online Chat

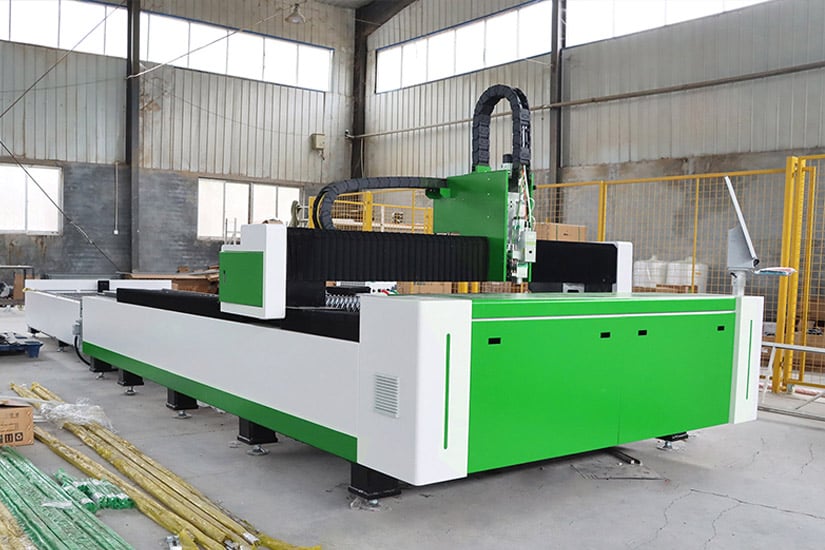

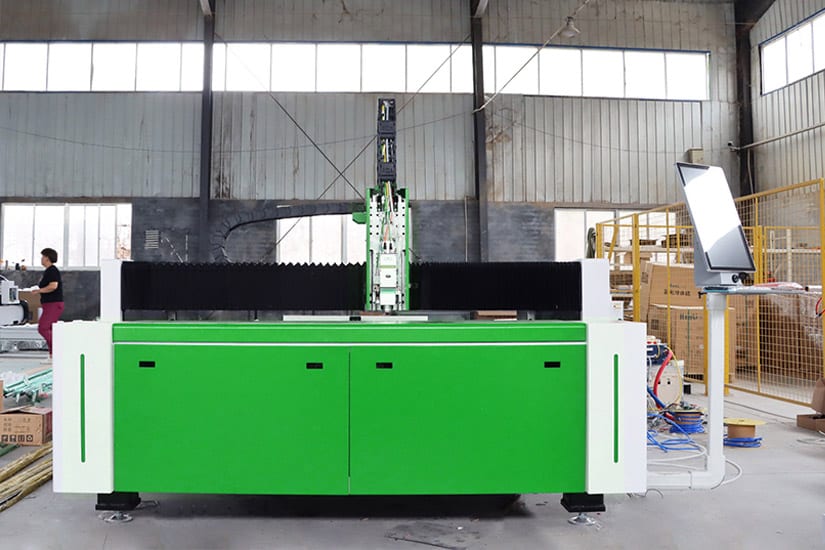

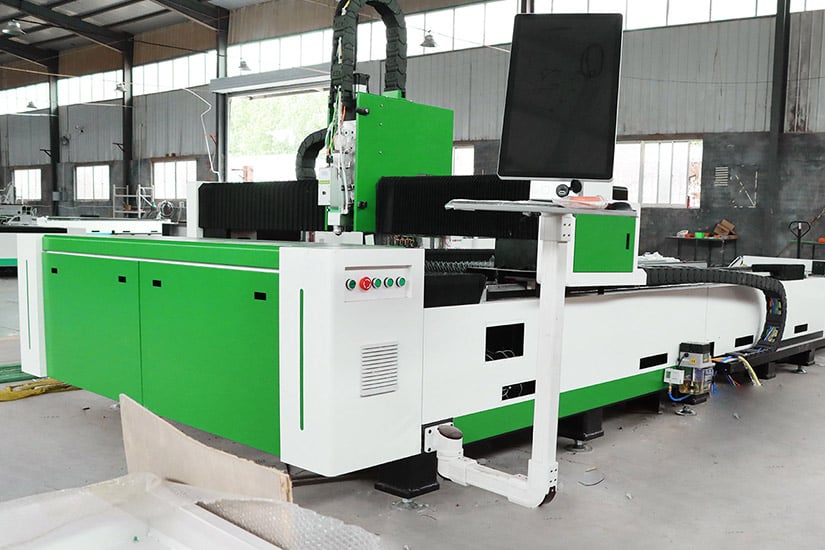

The dual-table fiber laser cutting machine with exchange platform is designed for high-efficiency metal processing, especially in demanding production environments. It features a dual-table system that allows one table to handle cutting operations while the other is used for loading and unloading materials. This greatly reduces machine downtime and significantly boosts overall productivity, making it an ideal choice for batch processing and continuous manufacturing.
Equipped with a powerful fiber laser source and high-precision motion control system, the machine delivers fast cutting speeds, clean edges, and excellent repeatability. The exchange platform operates automatically with smooth and reliable table switching, improving workflow and reducing manual labor. The robust frame structure ensures stable performance even under heavy-duty operation.
This MC3015FC model can cut a wide range of materials, including carbon steel, stainless steel, aluminum, brass, and galvanized steel. With its combination of speed, precision, and efficient material handling, the second table fiber laser cutting machine with exchange platform is a smart investment for businesses aiming to increase output and reduce cycle times without compromising on quality.
  • Dual-Table Exchange Platform: The machine is equipped with two cutting tables that operate alternately. While one table is cutting, the other can be used for loading or unloading materials. This significantly reduces idle time and boosts production efficiency.
  • High-Speed and High-Precision Cutting: Powered by a stable fiber laser source and precise servo motion system, the machine delivers excellent cutting accuracy with clean, burr-free edges across a wide range of metals, such as carbon steel, stainless steel, aluminum, and brass.
  • Heavy-Duty Machine Bed: Built with a robust welded steel frame that undergoes stress relief and aging treatment, the machine resists deformation and vibrations during high-speed cutting, ensuring long-term cutting stability and accuracy.
  • Efficient Material Handling: Thanks to the exchange platform, material handling is streamlined. Operators can prepare the next sheet while the current one is being cut, which reduces labor intensity and speeds up production cycles.
  • Flexible Power Configurations: Available in a variety of laser powers ranging from 1500W to 12kW, this machine can handle everything from thin sheets to thick plates. Users can select the right configuration based on processing needs.
  • Supports Long-Term Industrial Use: With its durable structure, reliable motion components, and intelligent control system, the dual-table machine is built to support long-term operation in demanding production environments, helping businesses reduce costs and increase ROI.
Model MC-3015FC
Cutting Range 3000*1500mm
Laser Type Fiber Laser
Laser Generator Raycus, Max
Laxer Power 1.5KW/2KW/3KW/6KW/12KW
Transmission System Gantry Double Drive Structure
Servo Motor Leadshine (XY Axis:750W, Z Axis: 400W)
Maximum Moving Speed 80m/min
Maximum Acceleration 1.0G
Positioning Accuracy ±0.01mm
Repeat Positioning Accuracy ±0.03mm
Voltage and Frequency 220V 50Hz/60HZ

Product Configuration

Fiber Laser Generator

Fiber Laser Generator

The laser generator (Raycus, Max) is the core component of a fiber laser cutting machine, providing stable and high-power laser output. Known for efficiency, reliability, and long lifespan, these generators ensure precise cutting with excellent beam quality. They support various power levels, enhancing cutting speed and material versatility.

Raytools Laser Cutting Head

Raytools Laser Cutting Head

Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency. It has an automatic focusing function to reduce human intervention. Double optical protection prolongs the life of the core lens. The temperature of the protective lens during cutting can be monitored in real time, effectively reducing poor cutting caused by contamination of the protective lens.

Raytools Control System

Raytools Control System

The RayTools XC3000S system is a CNC software for plane laser cutting in the power range of 30kW and below. Its core supports both EtherCAT bus servo and Pulse+Direction control, offering exceptional motion precision. It fully supports auto edge-finding, breakpoint resume, frame/scanning mode, dry run simulation, part nesting, manual/auto focus lift, and gas control.

Leadshine Servo Motor

Leadshine Servo Motor

Leadshine servo motors are engineered using advanced electromechanical design and high-quality components, delivering outstanding dynamic response, low torque ripple, minimal temperature rise, high power density, and excellent overload capacity. Ensure precise motion control, fast response, and stable operation.

Exchange Worktable

Exchange Worktable

The cutting worktable adopts the design of an upper and lower double exchange worktable. While one sheet is being processed, the next can be prepared, significantly reducing downtime and improving cutting efficiency. The high-speed automatic exchange mechanism is driven by a servo motor and guided by precision linear rails, ensuring smooth, stable, and synchronized table movement.

Material Thickness That Can Be Cut With Different Laser Powers

Material Type 1500W 2000W 3000W 6000W 12KW
Carbon Steel (N2/Air) 1mm 1-2mm 1-2mm 1-6mm 1-12mm
Carbon Steel (O2) 2-14mm 2-16mm 2-20mm 3-25mm 8-35mm
Stainless Steel (N2) 1-6mm 1-8mm 1-10mm 1-18mm 1-30mm
Aluminum Alloy (N2) 1-4mm 1-6mm 1-8mm 1-16mm 1-30mm
Brass (N2) 1-3mm 1-5mm 1-6mm 1-12mm 1-16mm
Copper (O2) / 1-3mm 1-4mm 1-8mm 1-10mm

Product Application

The standard sheet fiber laser cutting machine is widely applied in industries that require high-precision and high-efficiency metal cutting. It is commonly used in metal fabrication, machinery manufacturing, electrical enclosures, and kitchen appliance production, where it handles materials such as carbon steel, stainless steel, aluminum, and galvanized sheet with ease. Thanks to its fast cutting speed, clean edges, and minimal thermal distortion, this machine is ideal for producing brackets, control panels, cabinets, and structural components with consistent quality and minimal post-processing. Beyond general fabrication, this machine plays a key role in sectors like automotive, construction, and signage. In the automotive industry, it cuts body parts and structural reinforcements; in construction, it processes decorative panels and steel framework; and in signage, it enables the precise cutting of letters and logos from metal sheets. Its versatility, reliability, and low operating cost make it an essential tool for small workshops and large-scale production lines alike.
Fiber Laser Cutting Metal-1
Fiber Laser Cutting Metal-2
Fiber Laser Cutting Metal-3
Fiber Laser Cutting Metal-4

Why Choose Us

Maxcool CNC is a leading manufacturer of advanced laser cutting machines, offering state-of-the-art solutions designed for precision, efficiency, and reliability. With extensive industry experience, we focus on providing high-quality machines that meet the diverse needs of various metal cutting applications. Our commitment to innovation, customization, and exceptional customer service makes us the preferred choice for businesses worldwide looking to optimize their production processes. Whether you’re a small business or a large industrial player, Maxcool CNC is your trusted partner in laser cutting technology.

Superior Precision

Our laser cutting machines are engineered to provide unparalleled accuracy, ensuring clean, sharp cuts every time. With advanced optics and motion control, you can trust Maxcool CNC for the highest standard of cutting precision in every application.

Cutting-Edge Technology

Maxcool CNC incorporates the latest advancements in laser cutting technology, delivering efficient and powerful machines. Our systems feature intuitive interfaces and automated settings, enabling fast, error-free operations that boost productivity across industries.

Tailored Solutions

We offer custom solutions designed specifically to meet your business’s unique requirements. Our team works closely with you to understand your needs and deliver machines that optimize your workflow, whether for complex shapes or high-volume production.

Reliable Customer Support

Our commitment doesn’t end with the sale. Maxcool CNC provides exceptional after-sales service, with full technical support, training, and maintenance services. We ensure that your machines continue running at peak performance throughout their lifespan.

Customer Testimonials

4 reviews for Dual-Table Fiber Laser Cutting Machine with Exchange Platform

  1. Ethan –

    Impressive cutting precision. This machine has reduced our material waste, and the final results are always clean and professional.

  2. Noah –

    Easy to operate with clear instructions. The quality and speed of cuts are exceptional, perfect for our needs in precision engineering.

  3. Chloe –

    We’re able to handle higher volumes with this laser cutting machine. It provides great performance and has cut down our downtime.

  4. Mia –

    Love how user-friendly this machine is. The cutting precision is spot on and saves a lot of time on every project.
