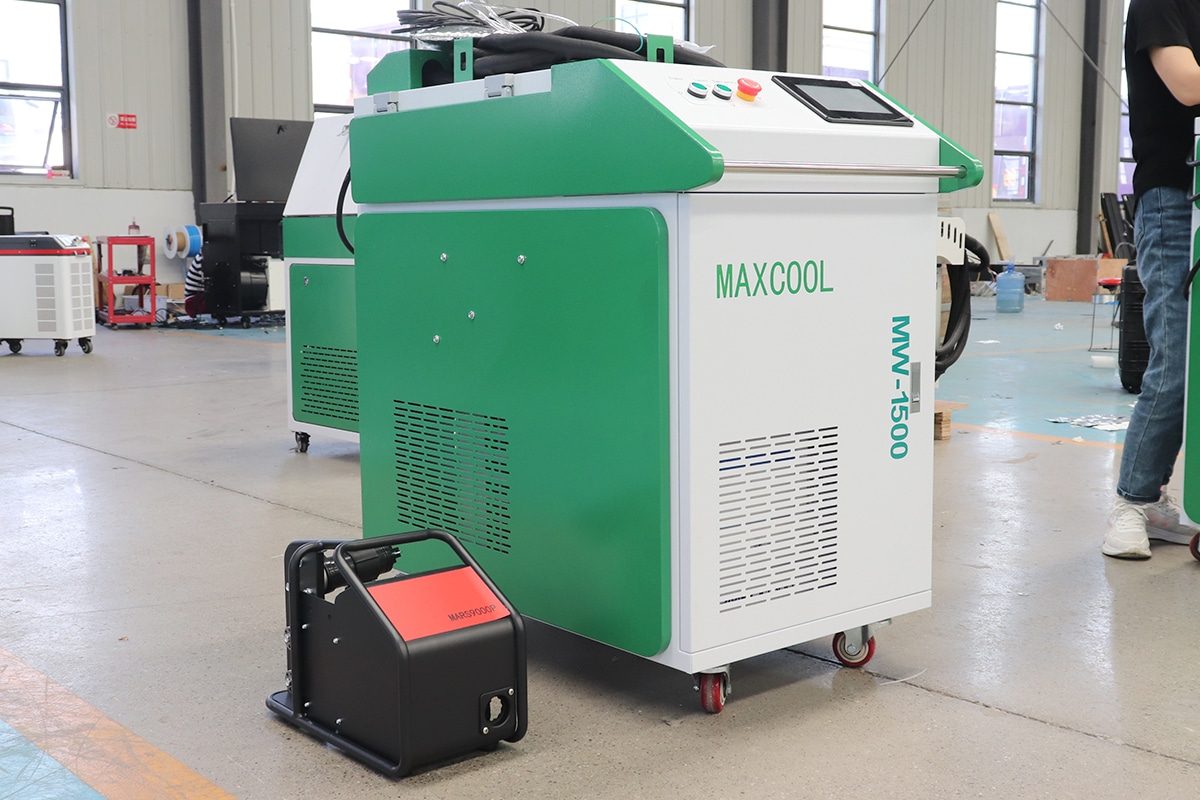

How Does Laser Welding Minimize Distortion and Warpage?
Distortion and warpage are persistent challenges in metal fabrication, especially when precision and dimensional stability are critical. These issues often arise due to the uneven heating and cooling cycles inherent to welding processes, which induce residual stresses and cause components to deform. In industries such as aerospace, automotive, electronics, and medical device manufacturing, even minor deviations in shape or alignment can lead to performance issues, increased rework, or outright part rejection. Traditional welding techniques, while effective for joining materials, tend to introduce substantial thermal input, exacerbating distortion problems, particularly in thin sections or complex geometries.
Laser welding has emerged as a solution that significantly reduces these thermal-induced distortions. By delivering a highly focused, high-energy beam of light, laser welding achieves deep penetration with minimal heat input and a very narrow heat-affected zone. This precision enables tighter control over thermal gradients, which in turn minimizes residual stress and deformation. As a result, components maintain their intended shape and tolerances far better than with conventional methods. This introduction sets the stage for a deeper examination of the mechanisms, parameters, and strategies by which laser welding excels at minimizing distortion and warpage, offering both improved quality and production efficiency.
Table of Contents
Laser Welding Basics
Laser welding has become a core technology in precision manufacturing due to its ability to produce high-quality welds with minimal heat input. Its efficiency, accuracy, and control make it especially well-suited for applications where distortion and warpage must be tightly controlled. To understand why laser welding is so effective at minimizing deformation, it’s important to examine how the process works, how it compares to traditional welding methods, and how key laser parameters influence thermal behavior.
Laser Welding Process Overview
Laser welding is a fusion welding technique that uses a concentrated laser beam to melt and join metals. The laser beam is generated by sources such as fiber lasers, CO₂ lasers, or Nd:YAG lasers and is delivered to the workpiece via optics or fiber delivery systems. The laser focuses light energy into a small, high-intensity spot, creating an extremely localized heat source.
There are two primary modes of operation:
- Conduction Mode: In this mode, the surface of the metal is heated, and heat is conducted into the material. The result is a shallow, wide weld. It’s ideal for thin materials or applications requiring minimal penetration.
- Keyhole Mode: At higher power densities, the laser vaporizes the metal at the focal point, creating a narrow, deep cavity known as a “keyhole.” The laser energy is absorbed efficiently through multiple reflections within the cavity, allowing for deep welds with narrow seams and limited heat-affected zones.
The process can be performed in continuous or pulsed mode, depending on the material and application. It may also be automated with robotic systems or CNC machines to ensure consistency and repeatability in industrial settings.
Key Advantages of Laser Welding Over Conventional Welding Methods
Laser welding offers several critical advantages over traditional welding techniques (such as MIG, TIG, or resistance welding), particularly in the context of minimizing distortion and warpage:
- Minimal Heat Input: The concentrated laser beam introduces heat in a very small area and for a very short time. This results in a small heat-affected zone (HAZ), reducing the thermal expansion and contraction responsible for distortion.
- High Processing Speeds: Laser welding can be performed at speeds far higher than arc welding methods. Faster travel speeds limit the time heat has to diffuse into surrounding material, reducing overall thermal stress.
- Deep Penetration with Narrow Welds: Especially in keyhole mode, laser welding achieves deep penetration with minimal width, which minimizes weld volume and thus the amount of thermal shrinkage.
- High Precision and Control: The ability to tightly control beam focus, power, and path results in consistent, repeatable welds with low variation—ideal for automated, high-accuracy environments.
- Little or No Filler Material: Laser welding is often performed autogenously (without filler). The absence of added material means fewer sources of volumetric change and distortion.
- Less Post-Weld Rework: The narrow and clean welds typically require minimal finishing. Reduced distortion means fewer corrective processes like straightening or machining, saving time and cost.
- Superior for Thin Materials and Complex Geometries: Traditional welding often distorts thin or intricate parts due to excessive heat spread. Laser welding’s localized energy minimizes this issue, preserving dimensional integrity.
These advantages make laser welding the preferred choice in industries where part accuracy, tight tolerances, and low deformation are critical, such as aerospace, automotive, electronics, and medical device manufacturing.
Laser Welding Basics
Laser welding is a high-precision, high-energy process that enables the joining of metals with minimal thermal input and exceptional control. It is increasingly used in industries that require tight dimensional tolerances and high production efficiency. To understand how laser welding minimizes distortion and warpage, it’s important to grasp the mechanics of the process, its comparative advantages over traditional methods, and how specific parameters influence outcomes.
Laser Welding Process Overview
Laser welding utilizes a highly focused beam of light to melt and join metals. The beam is generated by a laser source (such as a fiber laser, CO2 laser, or Nd:YAG laser) and delivered to the workpiece through a series of lenses, mirrors, or fiber optics. The energy density at the focal point can exceed 1 MW/cm², enabling rapid melting and fusion of metals with minimal heat diffusion.
The two primary modes of operation are:
- Conduction Mode Welding: Occurs at lower power densities. Heat is conducted from the surface into the material, resulting in a shallow, wide weld pool. This mode is suitable for thin materials where deep penetration is not needed.
- Keyhole Mode Welding: At higher power densities, the laser vaporizes the metal, forming a narrow cavity or “keyhole” filled with metal vapor. The laser energy is absorbed efficiently through multiple reflections within the keyhole, resulting in deeper, narrower welds with higher aspect ratios and less overall thermal impact on the surrounding material.
Laser welding can be performed in continuous wave or pulsed modes. Continuous wave (CW) lasers are used for long, uninterrupted welds on thicker materials, while pulsed lasers are ideal for spot welding or joining delicate components with minimal heat input.
The process may take place in open air with shielding gas (typically argon or helium) or in a vacuum, depending on the material and desired quality. Automated systems often include CNC controls or robotic arms to enhance precision and repeatability.
Key Advantages of Laser Welding Over Conventional Welding Methods
Compared to traditional welding techniques such as MIG (Gas Metal Arc Welding), TIG (Gas Tungsten Arc Welding), or resistance welding, laser welding offers several key advantages, especially when it comes to controlling distortion and warpage:
- Extremely Low Heat Input: Laser welding introduces far less heat into the workpiece because of the focused beam and rapid travel speeds. A smaller heat-affected zone (HAZ) means reduced thermal expansion, which directly correlates with less distortion.
- Minimal Thermal Gradient Across the Part: Traditional arc-based methods create wide thermal gradients that lead to uneven expansion and contraction. Laser welding’s localized heating keeps these gradients narrow and symmetrical.
- High Process Speed: The laser can move across the workpiece at speeds several times faster than arc welding. Faster welding minimizes the time heat has to spread and cause thermal deformation.
- Precise Energy Placement: The laser beam can be directed with micron-level accuracy, enabling extremely small weld seams and exact control over penetration depth. This reduces bulk and helps maintain part geometry.
- No or Minimal Filler Material: Laser welding is often performed autogenously, using only the base material to form the weld. This reduces mass and thermal load, both of which contribute to distortion.
- Excellent Automation Potential: Laser welding integrates well with robotic and CNC systems. Automated systems ensure consistent welds with minimal variation, further reducing the chances of dimensional inconsistency.
- Cleaner Welds with Less Post-Processing: The high focus and control of laser welding result in narrow seams, minimal spatter, and reduced oxidation, minimizing the need for grinding, reshaping, or heat treatment.
- Better for Sensitive or Complex Assemblies: For small, delicate, or intricate parts—especially in electronics or medical devices—laser welding minimizes stress and deformation that could otherwise render parts unusable.
Role of Laser Parameters in Controlling Distortion and Warpage
The precision of laser welding depends heavily on the correct setting of several parameters. Controlling distortion and warpage is not just a function of using a laser—it depends on fine-tuning the laser’s behavior to match the material and joint design.
Key parameters include:
- Laser Power: Determines the total energy available to melt the material. While high power enables deeper welds, too much can overheat the part and cause distortion. Balancing power relative to material thickness is essential.
- Welding Speed: A faster welding speed reduces heat input per unit length, limiting thermal diffusion and the size of the HAZ. However, excessive speed can result in incomplete fusion or porosity. The goal is optimal penetration with minimum heat exposure.
- Beam Focus Position: The focal point’s location affects energy density. A tightly focused beam increases penetration but also concentrates heat. Slight defocusing can spread energy slightly and may reduce peak thermal gradients, depending on the application.
- Pulse Duration and Frequency (for pulsed lasers): In pulsed laser welding, short bursts of energy allow precise control of heat input. Lower frequency or shorter pulses can be used to weld sensitive parts with minimal thermal buildup.
- Shielding Gas Type and Flow Rate: Shielding gas (typically argon, helium, or nitrogen) protects the molten pool from oxidation and affects the cooling rate. The gas composition and flow influence arc stability, penetration depth, and heat transfer.
- Joint Design and Fit-Up: Laser welding requires precise alignment and close joint gaps, as the narrow beam doesn’t bridge large gaps well. Poor fit-up can cause inconsistent energy absorption, leading to localized overheating or incomplete fusion.
Each of these parameters must be optimized for the specific material, thickness, and joint type. When properly controlled, laser welding creates uniform thermal profiles, minimizes thermal stress, and significantly reduces distortion and warpage across the welded part.
Factors That Contribute to Distortion and Warpage
Before understanding how laser welding reduces distortion and warpage, it’s important to examine what causes these problems in the first place. Distortion is primarily a result of thermal and mechanical imbalances introduced during the welding process. When metal is heated and then cooled unevenly, internal stresses build up and cause the material to deform. These effects are influenced by heat flow, material behavior, and specific process conditions.
Thermal Effects
Thermal effects are the primary driver of distortion and warpage during welding. As heat is applied, the metal near the weld expands. Upon cooling, it contracts—but not always uniformly. This creates stress differentials across the workpiece, leading to changes in shape, misalignment, or curvature. Key thermal contributors include:
- Heat Input: Excessive or poorly controlled heat input leads to a larger heat-affected zone (HAZ), where expansion and contraction forces are the greatest. The wider the HAZ, the more surrounding material is affected, and the higher the risk of distortion.
- Thermal Gradients: Sharp temperature differences between the weld zone and adjacent material cause uneven expansion and contraction. For example, rapid heating in a localized area can cause it to expand while cooler areas remain static, inducing angular or longitudinal deformation.
- Cooling Rate: Fast cooling can induce high tensile stresses in the weld and HAZ, while slow cooling can result in large grain growth and a longer thermal exposure period. Both scenarios affect the stability and shape of the welded structure.
Metallurgical Changes
The welding process also induces structural and phase changes in the base material. These metallurgical transformations can influence how the material expands, contracts, and responds to thermal cycles. Critical metallurgical factors include:
- Phase Transformation: Some metals undergo changes in crystal structure when heated and cooled. For example, carbon steels may transform from austenite to martensite during rapid cooling, a process that causes volumetric changes and introduces internal stresses.
- Grain Growth: High temperatures can lead to coarsening of grains in the heat-affected zone. Coarse grains are generally weaker and more prone to cracking, which may exacerbate warpage when the part is subjected to additional stress during service.
- Residual Stress Formation: As molten metal solidifies, it contracts. If this contraction is restrained by adjacent material or clamping, it creates residual stress. These locked-in stresses can cause warping either immediately or over time.
- Microstructural Inhomogeneity: Uneven heating or inconsistent cooling can lead to differences in microstructure across the weld area, contributing to differential contraction and uneven mechanical properties, which in turn cause localized deformation.
Welding Process Parameters
The way a weld is performed has a direct impact on the level of distortion and warpage experienced. Welding process parameters govern heat delivery, joint interaction, and the physical forces at play during fusion. Key process-related contributors include:
- Welding Speed: Slow travel speeds increase the time that heat is applied to the material, leading to greater heat accumulation and wider HAZs. Faster speeds reduce heat input but can result in poor fusion if not balanced properly.
- Weld Sequence and Direction: The order in which welds are applied and the direction they follow can influence how stress accumulates. Poor planning can trap heat in certain areas or create unbalanced contraction forces.
- Joint Fit-Up and Design: Gaps between parts, poor alignment, and inconsistent joint geometry make it harder to maintain consistent heat input, often resulting in localized overheating and uneven weld formation.
- Clamping and Fixturing: Improper restraint during welding can either allow too much movement (leading to uncontrolled warpage) or apply uneven pressure that distorts the part once released.
- Weld Size and Volume: Larger welds mean more melted material, which in turn leads to more contraction upon solidification. Oversized welds not only waste material but also increase distortion risk.
Understanding these contributing factors is essential for selecting or modifying welding techniques to minimize deformation. Laser welding addresses many of these root causes by delivering low heat input, controlled energy distribution, and precise thermal management.
Mitigation Mechanisms for Distortion and Warpage in Laser Welding
Laser welding stands apart from traditional welding processes because of its inherent ability to limit the root causes of distortion and warpage. It does so through a combination of precise energy delivery, narrow heat input, and intelligent process control.
Narrow Heat-Affected Zone (HAZ)
One of the most effective ways laser welding minimizes distortion is by significantly reducing the size of the heat-affected zone (HAZ). The HAZ is the area of base material that experiences a change in microstructure due to heat exposure. In traditional welding methods, the HAZ can be quite large due to slow heat dissipation and broader arc distribution.
Laser welding’s highly focused beam concentrates energy into a small area, allowing rapid heating and cooling. As a result:
- Less material is thermally affected.
- The thermal gradient is sharper but localized.
- The risk of the surrounding material expanding or contracting unevenly is reduced.
This narrow HAZ helps preserve the original shape and geometry of the part, especially in thin sections or near complex features.
Precise Control and Energy Distribution
Laser welding systems offer unparalleled precision in controlling how and where energy is applied. The beam can be focused down to microns, and parameters such as power, spot size, and pulse duration can be adjusted in real time.
This precise control enables:
- Targeted energy input: Only the joint area is heated, leaving adjacent areas virtually unaffected.
- Even heat distribution: Techniques like beam oscillation or scanning help spread energy more uniformly to avoid localized overheating.
- Custom weld profiles: Beam shaping tools can modify the intensity profile (e.g., Gaussian, top-hat) to suit different materials or joint configurations.
Such high-resolution control prevents erratic heat spread and ensures that the entire process remains within the thermal limits required to prevent deformation.
Residual Stress Minimization
Residual stresses are internal forces that remain in a material after it has been welded and cooled. These stresses often arise due to uneven heating and contraction and are a major contributor to warpage and distortion over time.
Laser welding helps minimize residual stress in several ways:
- Lower total heat input means less expansion and contraction, reducing the buildup of internal stresses.
- Faster cooling rates result in shorter thermal cycles and less time for stress accumulation.
- Symmetrical weld designs (e.g., simultaneous welding from both sides) can help balance thermal shrinkage forces.
Additionally, the minimal weld pool and tight control reduce stress concentration points, further preserving structural integrity and dimensional accuracy.
Joint Design Considerations
Laser welding encourages the use of optimized joint designs that inherently reduce distortion risk. Because the process can join metals with small, focused seams and tight tolerances, designers can implement joints that are both structurally sound and thermally efficient.
Common joint design considerations include:
- Butt joints with zero or minimal gap: Reduces the need for filler material and limits thermal deformation.
- Lap joints with minimal overlap: Reduces weld volume and associated contraction forces.
- Double-sided welds: Help neutralize stress by balancing heat input from both sides.
- Interlocking features or self-locating joints: Enhance part stability during welding and reduce reliance on clamping, which can introduce stress when released.
Smart joint design complements the precision of laser welding to create assemblies that resist warping both during and after welding.
Real-Time Monitoring and Feedback Control
Advanced laser welding systems often integrate sensors and control software that monitor the process in real time and make adjustments on the fly. This feedback loop is essential for maintaining consistent energy input and mitigating any signs of impending distortion.
Real-time monitoring tools may include:
- Temperature sensors: Detect overheating or irregular cooling patterns.
- Optical seam tracking: Ensures the beam follows the intended path exactly, even if parts shift.
- Closed-loop power control: Adjusts laser output based on material response.
- Machine vision systems: Identify gaps, misalignments, or defects before they result in distortion.
With these capabilities, deviations can be corrected before they propagate into large-scale warpage. This level of process intelligence is rarely achievable with conventional welding methods and is a key reason laser welding produces high-integrity, low-distortion welds consistently.
Together, these mitigation mechanisms—tight thermal control, intelligent energy distribution, and adaptive feedback—make laser welding uniquely effective in reducing distortion and warpage. These capabilities are not only beneficial in improving part quality but also in lowering production costs by reducing the need for rework, realignment, and post-weld correction.
Practical Strategies to Minimize Distortion and Warpage
Although laser welding inherently reduces distortion due to its focused energy and low heat input, specific strategies can further minimize deformation in demanding applications. These practical measures target thermal control, structural restraint, and residual stress management. When integrated into the welding process, they improve consistency, precision, and long-term dimensional stability. Three widely used techniques include backside cooling, heat treatment, and the use of fixtures and supports.
Backside Cooling
Backside cooling involves applying a cooling mechanism, such as water-circulated chill blocks, compressed air jets, or thermally conductive tooling, to the side of the workpiece opposite the weld seam. This technique accelerates heat dissipation and helps equalize the temperature distribution through the thickness of the material.
How it minimizes distortion:
- Reduces thermal gradients across the part by extracting heat from the rear surface.
- Controls cooling rates to avoid localized hot spots and sharp temperature differentials.
- Limits expansion and contraction cycles that cause warping in thin sheets or dissimilar metals.
Backside cooling is particularly beneficial when welding thin-gauge metals or heat-sensitive alloys, where overheating can lead to severe distortion, discoloration, or metallurgical instability.
Pre- and Post-Weld Heat Treatment
Managing the material’s temperature before and after welding can significantly affect how stress develops and relaxes. Both preheating and post-weld heat treatment (PWHT) are used to balance thermal input and reduce distortion-related defects.
Pre-weld heat treatment:
- Reduces the initial temperature difference between the weld area and the surrounding material.
- Lowers the risk of hardening or cracking in materials prone to brittle phase transformations (e.g., high-carbon steels).
- Provides more uniform thermal expansion, decreasing the likelihood of stress concentration.
Post-weld heat treatment:
- Relieves residual stress that forms during rapid cooling and solidification.
- Stabilizes the microstructure and prevents delayed warpage, particularly in large or complex parts.
- Common techniques include stress-relief annealing or controlled cooling cycles, tailored to the base material.
In applications involving aerospace alloys, stainless steels, and precision assemblies, pre- and post-weld heat treatments are standard practice to maintain tolerances and prolong service life.
Fixtures and Supports
Mechanical fixtures are essential for holding parts in the correct position during welding and for countering distortion caused by thermal movement. However, the design and placement of these supports must be deliberate to avoid introducing stress or restricting natural shrinkage paths.
Best practices include:
- Rigid clamping systems are used to maintain joint alignment, especially for long welds or large panels.
- Balanced restraints on both sides of the weld line to avoid asymmetric deformation.
- Heat-resistant materials for fixtures that can withstand welding temperatures without warping.
- Compliant or movable elements in the fixture design allow for controlled expansion or contraction.
In high-precision manufacturing environments, custom jigs or modular fixturing systems are often used to ensure repeatability and minimize operator-induced variation. The release of fixtures post-weld should also be gradual, as sudden unclamping can result in spring-back or latent warpage.
By implementing these strategies in tandem with laser welding’s inherent advantages, manufacturers can achieve remarkably low distortion levels—even in complex geometries, tight-tolerance assemblies, and high-value components. These practical measures form an essential part of distortion control in real-world production.
Summary
Distortion and warpage are persistent challenges in welding, often caused by uneven heating, excessive thermal input, and residual stresses. These issues can compromise the dimensional accuracy, structural performance, and visual quality of welded components, especially in industries that demand high precision. Laser welding, with its focused energy delivery, high processing speed, and minimal heat-affected zone, offers a powerful solution to these problems.
Unlike conventional welding methods, laser welding minimizes distortion by localizing heat input, enabling rapid heating and cooling, and reducing thermal gradients. Its precision allows for better control over weld size, penetration depth, and heat distribution. Additional advantages include lower residual stress formation, minimal filler material usage, and reduced post-weld correction.
Complementary strategies—such as backside cooling, pre- and post-weld heat treatment, and intelligent fixture design—further enhance dimensional stability. Process parameters like laser power, focus, speed, and shielding gas can be optimized to suit specific materials and joint configurations, allowing engineers to proactively manage distortion risk.
In combination, these features make laser welding an ideal choice for fabricating high-accuracy components in demanding sectors such as aerospace, automotive, electronics, and medical devices. By controlling the root causes of deformation, laser welding sets a high standard for modern precision joining technology.
